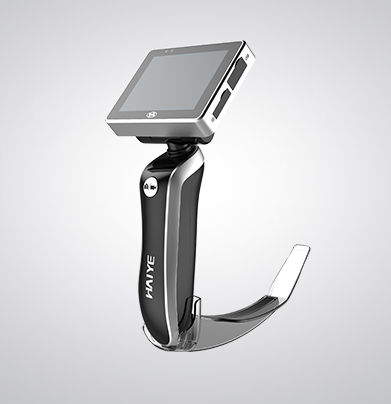

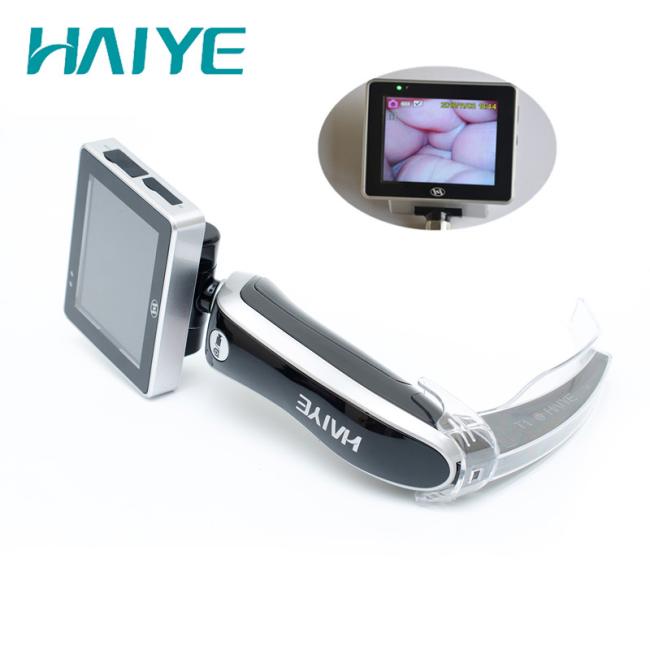

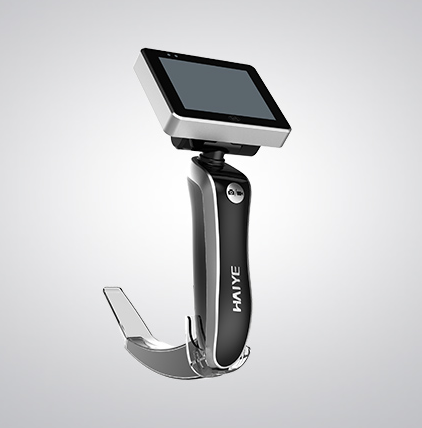

Handheld Anesthesia Video Laryngoscope
Hotting Sale! Factory price Surgical and Anesthesia Disposable blade Video Laryngoscope
Portable Adult disposable blade video laryngoscope
Specifications for the Video Laryngoscope
|
PARTS
|
Description
|
Technical Index
|
|
Machine
|
Screen
|
3 inch LCD
|
|
Resolution
|
960*480 (RGB)
|
|
|
Viewing angle
|
≥70º
|
|
|
Power
|
<2W
|
|
|
Display front and back rotation Angle
|
0 º~175 º
|
|
|
Weight
|
225g
|
|
|
Camera
|
Illuminance
|
≥3000 LUX
|
|
Resolution
|
1280*720 px
|
|
|
Image/Video function
|
Image/ Video function
|
Yes
|
|
Output
|
USB output, Easy to storage and establish image/video
|
|
|
Memory type
|
Micro SD card 32GB
|
|
|
Battery
|
Battery Type
|
Rechargable lithium battery
|
|
Capacity
|
3400mAh
|
|
|
Cycle life of battery
|
>600 times
|
|
|
Battery working time
|
>400min
|
|
|
Charging time
|
<2(hrs)
|
|
|
|
Charging Port
|
Micro USB
|
|
Power Adapter
|
Input
|
100-250V, 50 Hz.
|
|
Output
|
5V1A
|
|
|
Working
Condition |
Temperature
|
-5℃~+50℃
|
|
Humidity
|
10%~90%
|
|
|
Air Pressure
|
860~1060hpa
|
|
|
Transport / Storage
Condition |
Temperature
|
-10℃~50℃
|
|
Humidity
|
≤93%
|
|
|
Air Pressure
|
500~1060hpa
|
Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia, ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
One shot button for Recording
One cable connect to PC for data management
One cable connect to large LCD for better view (option)
Full touch scree with user friendly operation
Wireless charging
**Portable
Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.
Packing and Delivery
Packing Size :260*230*185mm
Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 1 blade.
