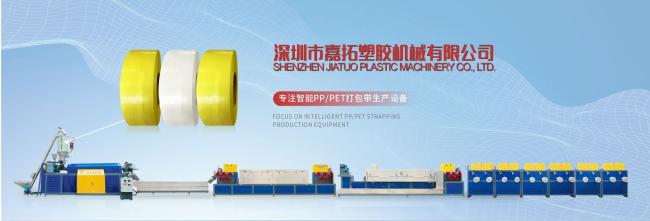

380V/220V PP Strap Making Machine 50KW Power Consumption Straightness Flexible
380V/220V PP Strap Making Machine 50KW Power Consumption Straightness Flexible
What is PP Strapping
PP strapping (polypropylene packing belt) is a lightweight industrial packaging strap with high tensile strength, suitable for carton packing, logistics packaging and commodity packing.
Technical Parameters of PP belt four output making machine
| 1 | Materials | Polypropylene PP raw material pellets, recycled pellets. |
| 2 | Product | PP strap (1 mould for 2 straps) |
| 3 | Capacity | 100-120kg/h |
| 4 | Total install power | 80kw, (actual power consumption is 40-50%) |
| 5 | Strap width | 5mm-19 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 2person/shift |
| 8 | Workshop required | L (30m) ×W (2m) ×H (4m) |
| 9 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches | Fotek |
| 13 | Motor power | GUGAO |
Features of PP belt production line
Applications of PP strapping
1. Logistics and Warehousing Industry
2. Food and Beverage Industry
3. Building Materials Industry
4. Paper and Printing Industry
5. Retail and Supermarket Sector
6. Textile and Clothing Industry
7. Electronics and Appliance Industry
8. Agricultural Product Packaging
FAQ
1. What specifications of PP strap can your machine produce?
Our machine produces PP strap with width 5–19mm, thickness 0.45–1.00mm, tensile strength 50–200kg, standard paper core Ø200mm, length 1000–7000m/roll, suitable for logistics, carton, appliance, wire and other packing scenarios.
2. What raw materials are suitable for the PP strap production line?
Suitable for PP virgin pellets and PP recycled flakes, recommended density 0.92–0.96g/cm³. Equipped with 4-position double-column screen changer to remove impurities and ensure stable extrusion.
3. What is the suitable working temperature for the machine?
Extrusion temperature 180–220℃. Finished PP strap works stably at -10℃ to 80℃; softening or brittleness may occur beyond this range.
