Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine
Price:
Negotiable
MOQ:
1 SET
Delivery Time:
30-40days
Brand:
PP strap making machine
Product Description

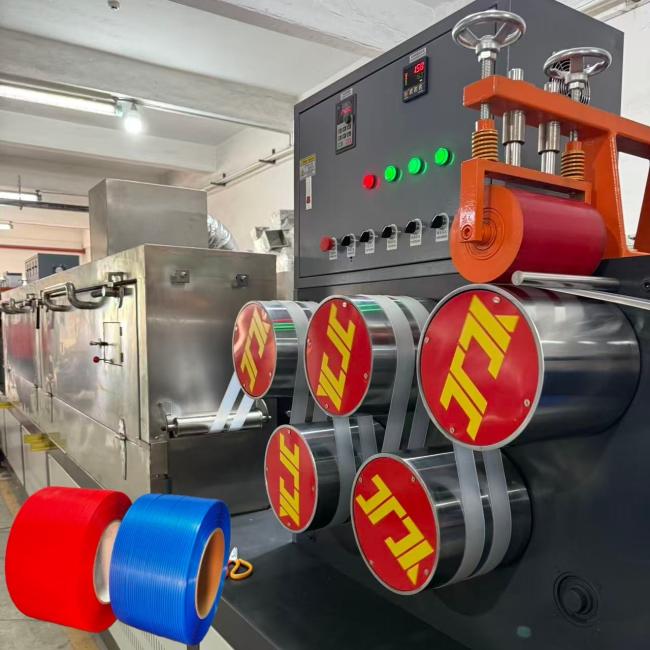

Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine
Technical Parameters of PP strap making machine
| Model | PP-2 | PP-3 | PP-4 | PP-6 |
| Production material | PP new raw materials | PP new raw materials | PP new raw materials | PP new raw materials |
| Number of strips produced | 2 | 3 | 4 | 6 |
| Output bandwidth (mm) | 5-19mm | 5-19mm | 5-19mm | 5-19mm |
| Tape thickness (mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Extrusion volume (kg/h) | 100-125kg/H | 180-220kg/H | 250-290kg/H | 350-375kg/H |
| Maximum linear speed(m/min) | ≥260 | ≥260 | ≥260 | ≥260 |
| PLC control system | PLC | PLC | PLC | PLC |
| Screw model | 90 | 100 | 110 | 125 |
The flow process of making PP strapping
Feeding material→ material barrel heating → into screw hearting → screen mesh filter material → mould output strap → traction the strap → stretching → embossing → printing →setting oven make the strap more straightness → winding final product
Tips: if you dont need printing the information on strap, then leave the printing step.
Feature of JIATUO PP strap making machine
- Large-capacity material barrel reduces frequent feeding and improves production efficiency.
- Non-stop screen changer allows filter mesh replacement without shutting down the machine, greatly enhancing production efficiency.
- The finished strapping features small width and thickness tolerances: width tolerance ±0.3mm, thickness tolerance ±0.03mm.
- Equipped with a torque double-station winder for easier operation and faster roll changing.
Application of PP strapping
- logistics & warehousing industry
- e-commerce packaging
- food & beverage packaging (secondary packaging)
- construction material packaging
- paper & printing industry
- textile & fiber packaging
FAQ
4. What is the tolerance of finished strapping band?
- Width tolerance: ±0.3 mm
- Thickness tolerance: ±0.03 mm
- Stable and uniform size ensures smooth use on automatic strapping machines.
5. Can the line run continuously for a long time?
Yes. It is equipped with a non-stop screen changer and large-capacity hopper to reduce downtime, supporting long-hour stable production.
6. How many workers are needed to operate one line?
Normally 1–2 workers are enough. The line adopts PLC control system, easy to operate and maintain.
7. Can we adjust the size of strapping band?
Yes. By changing molds and adjusting process parameters, you can produce common specifications such as 5–19 mm width and different thicknesses.
