3Kw Stud And Track Roll Forming Machine 0.8m Metal Stud Making Machine
Stud And Track Lines Light Weight Keel Roll Forming Machine With 25m/Minute Speed
1. Specification of Keel Roll Forming Machine
|
1
|
Suitable to process
|
Color alu-zinc steel strips
|
|
2
|
Roller
|
12Rows plus leveling device
|
|
3
|
Dimensions
|
5.4*1*1.5m
|
|
4
|
Motor Power
|
3Kw
|
|
5
|
Pump Station Motor
|
3Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ50mm
|
|
10
|
Weight
|
About 2600kgs
|
|
11
|
Main structure of the machine
|
Square steel frame
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer's need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Gear driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
2. description of Keel Roll Forming Machine
Light Gauge Stud & Track:
• Material thickness: 20 to 26 Gauge
• Single or Double Arm Uncoiler with optional Coil Car
• Optional Vertical Uncoiler
• Web size: 1-5/8" to 6"
• Flange/Leg height (Stud): 1-1/4 to 2-1/2"
• Flange /Leg height (Track): 1-1/4 to 2-1/2"
• Lip dimension: 1/4 to 1/2"
Smaller and larger part sizes can be added upon request
• High precision Roller Die Tooling designed inhouse
• Automatic or Manual Width Adjustment
• Optional Auto-Gauge adjustment
• Post-punched hole sizes to suit customer specifications
• Cut off with inserts for different sizes and profiles
• Indented screw or rivet holes plus available upon request
3. FAQ of of Keel Roll Forming Machine
● What is your machine warranty?
some quick-wear parts will be container together with machine.
if some parts damaged within one year, we will send new one to you for free, just freight up to you.
● Is it complicated to operate the machine?
It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.
● How many different profile roofing one machine can produce?
One machine can produce one or two different profiles.

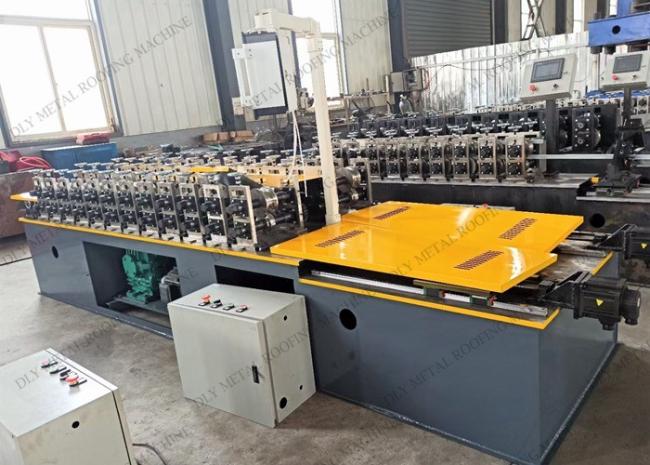

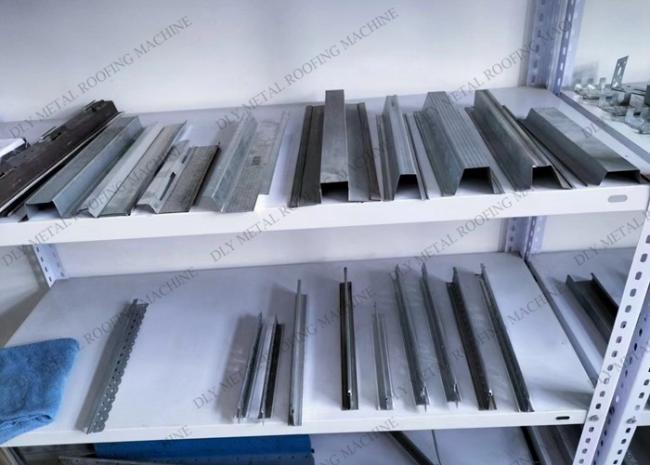

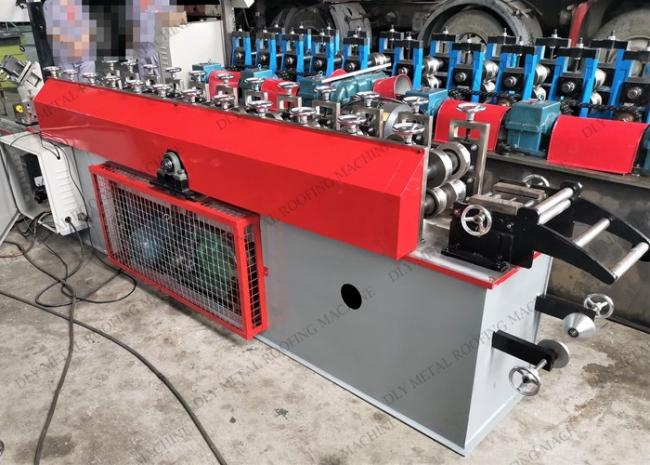

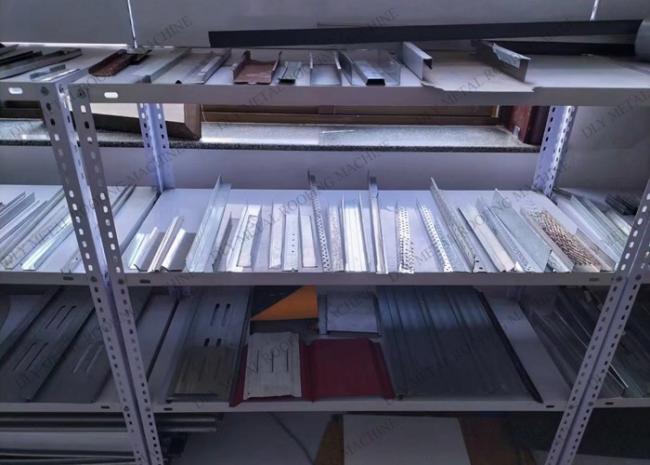

4. details photos of Keel Roll Forming Machine
