Metal Pencil Ribs Snap Lock Machine 11kw Standing Seam Profiling Machine
Metal Pencil Ribs Automatic Snap Lock Metal Roofing Machine For Wall
1. Description of Snap Lock Metal Roofing Machine
Lightweight roofing with special concealed clip fixing. No holes hence leak proof.
Special designed clip fixing System makes it strong roof to wind, rain and earthquakes.
It supports the arc roof, available in many architectural designs: FR Plain | FR Ribbed | FR Multiribbed | FR Stripes
Steel sheets are prepainted Galvalume or bare Galvalume and have the longest life of any roofing sheet available.
Any length up to 12 meters. available more than 12 meters.
2. Specifications of Snap Lock Metal Roofing Machine
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 19 Rows |
| 3 | Dimensions | 8*1.5*1.6m |
| 4 | Motor Power | 5.5KW |
| 5 | Pump Station Motor | 3KW. Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment HRC58-60 |
| 9 | Diameter of the roller | 75mm |
| 10 | Weight | About 5000kgs |
| 11 | Main structure of the machine | 400H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 20mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer's need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance |
±2mm |
3. snap lock roof panel machine export standard packages details
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

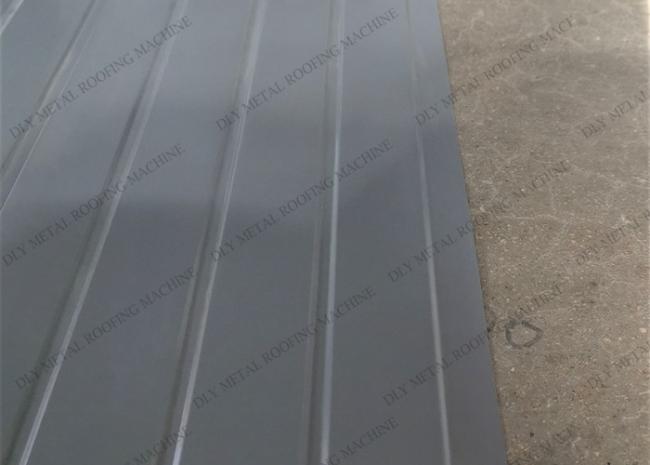

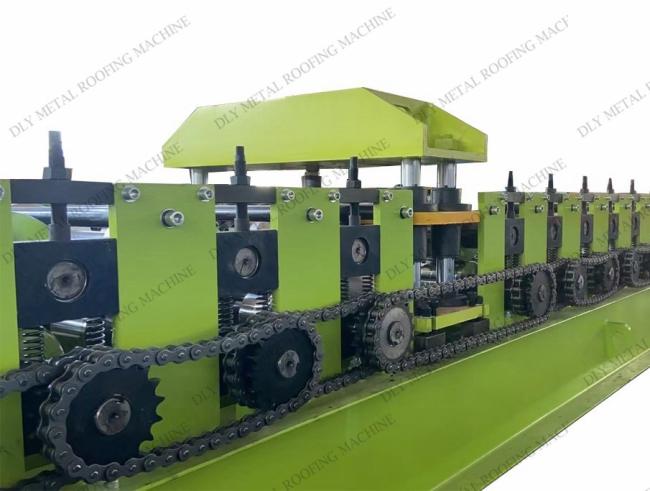

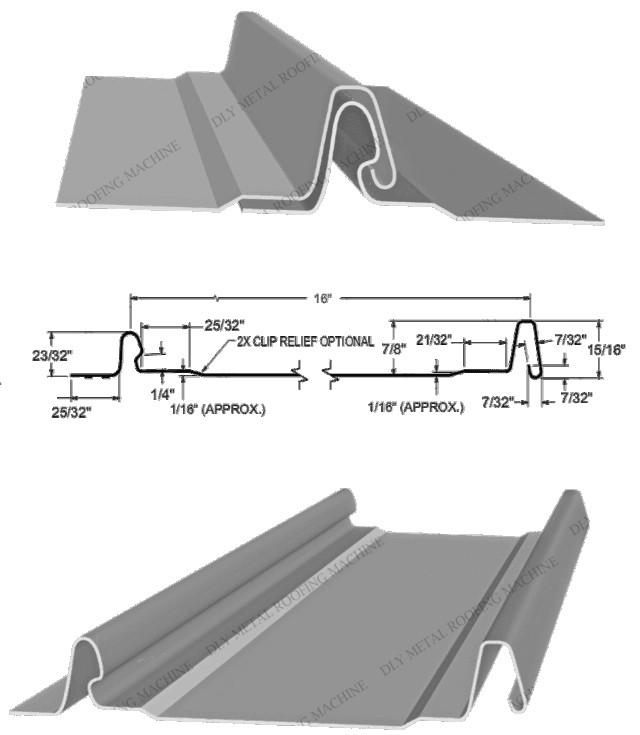

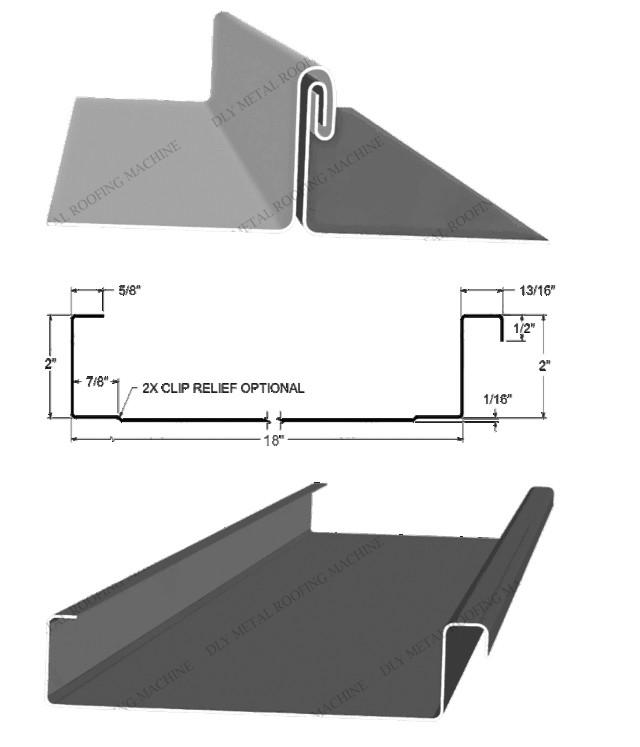

4. Detail pictures of Snap Lock Metal Roofing Machine
