Polcd Mini Tft Lcd Module Display 3.97 Inch 4 Inch 480*480
square screen all view angle 262k color 18 bit rgb interface ctp touch lcd display
TFT Display Description:

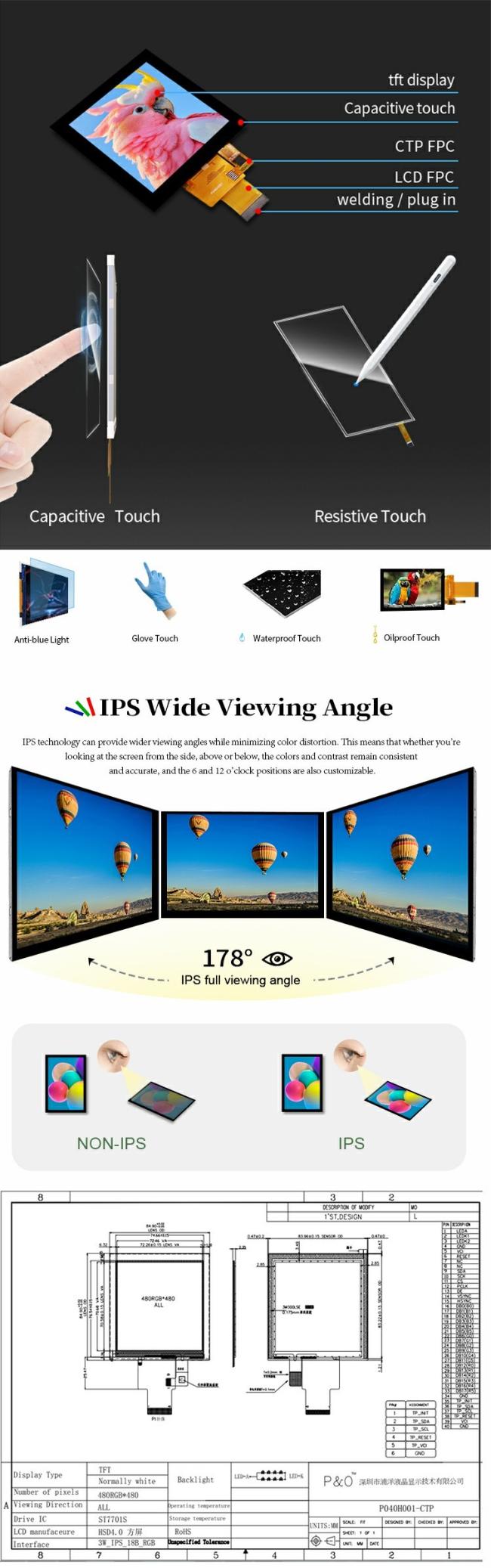

A 3.97 inch TFT LCD with IPS technology provides wider viewing angles and higher contrast ratios for clearer and more realistic image display, making it suitable for various applications.
Parameter:
| TFT LCD | Specification |
| Model No. | P040H001-CTP |
| Screen Size | 3.97 inch |
| Number of Pixel | 480RGB(H)x480(V) |
| Display area | 71.856(H)x70.176(V)mm |
| Pixel pitch | 0.1497(H)x0.1462(V)mm |
| Pin | 40 pin |
| Outline Dimension | 84.90x84.90x2.35mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black/Transmissive |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 800:1 |
| Interface | RGB 18BIT |
| Back-light | LED Side-light type |
| Drive IC | ST7701S |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Applications
A 3.97 inch TFT LCD is a small-sized display with a high resolution and excellent color performance. It is widely used in various applications, such as portable devices, automotive electronics, medical equipment, and industrial control systems. In portable devices, it can be used as a display screen for smartphones, digital cameras, and portable media players. In automotive electronics, it can be used as a display screen for car infotainment systems, rearview cameras, and GPS navigation systems. In medical equipment, it can be used as a display screen for patient monitors, ultrasound machines, and endoscopes. In industrial control systems, it can be used as a display screen for PLCs, HMIs, and data loggers.
