2v 350ma Ceramic 3030 Chip Smd Led Light 720-740nm
2V 350MA 1.5W CERAMIC3030 0.4-0.6LM 720-740NM SMD LED CHIP FOR PLANT LIGHTING
Characteristic
Maximum Ratings
Parameter Symbol Values
| Operating Temperature |
Top |
min. max. |
-40 °C 125 °C |
| Storage Temperature |
Tstg |
min. max. |
-40 °C 125 °C |
| Junction Temperature | T | max. | 135 °C |

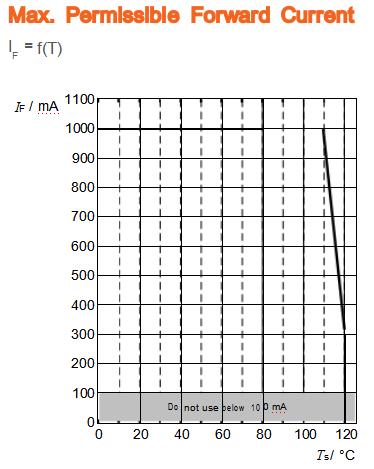

| Forward current | I |
min. max. |
100 mA 500 mA |
|
Surge Current t ≤ 10 µs; D = 0.005 ; TJ = 25 °C |
FS | max. | 700 mA |
| Reverse voltage 2) | V | Not designed for reverse operation | |
|
ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) |
ESD | 8 kV |
Characteristics
I = 700 mA; TJ = 25 °C
Parameter Symbol Values
| Peak Wavelength | λpeak typ. 730 nm |
|
Centroid Wavelength 3) I = 350 mA |
λcentroid min. 710 nm typ. 727 nm max. 740 nm |
|
Dominant Wavelength 3) I = 350 mA |
λdom typ. 35 nm |
| Spectral Bandwidth at rel,max | ∆λ typ. 20 nm |
| Viewing angle at 50% IV | 2φ typ. 140 ° |
|
Forward Voltage 4) I = 350 mA |
1.8V 2.00V 2.30V |
| Reverse current 2) | Not designed for reverse operation |
| Electrical thermal resistance junction/solderpoint with efficiency ηe = 74 % | RthJS elec. typ. 1.3 K / W |
Forward Voltage Groups
Group Forward Voltage 4)
I = 350 mA
| 1.80 V | 1.90 V |
| 1.90 V | 2.00 V |
| 2.00 V | 2.10 V |
| 2.10 V | 2.20 V |
Centroid
Group
Centroid Wavelength 3)
I = 350 mA
λcentroid
| 710NM | 740NM |
Relative Spectral Emission
Irel = f (λ); IF = 350 mA; TJ = 25 °C
Radiation Characteristics
Irel = f (ϕ); TJ = 25 °C
Dimensional Drawing
Further Information:
Approximate Weight: 28.0 mg
Package marking: Anode
Corrosion test:Class: 3BTest condition: 40°C / 90 % RH / 15 ppm H2S / 14 days (stricter than IEC 60068-2-43)
ESD advice: The device is protected by ESD device which is connected in parallel to the Chip.
Reflow Soldering Profile
Product complies to MSL Level 2 acc. to JEDEC J-STD-020E
Profile Feature Symbol Pb-Free (SnAgCu) Assembly Unit
Minimum Recommendation Maximum
|
Ramp-up rate to preheat*) 2 25 °C to 150 °C |
3 | K/s |
|
tS 60 100 T to T |
120 | s |
|
Ramp-up rate to peak*) T to T 2 |
3 | K/s |
| Liquidus temperature TL 217 | °C | |
| Time above liquidus temperature tL 80 | 100 | s |
| Peak temperature T 245 | 260 | °C |
|
Time within 5 °C of the specified peak 10 20 temperature TP - 5 K |
30 | s |
|
Ramp-down rate* 3 T to 100 °C |
6 | K/s |
|
Time 25 °C to TP |
480 | s |
All temperatures refer to the center of the package, measured on the top of the component * slope calculation DT/Dt: Dt max. 5 s; fulfillment for the whole T-range
