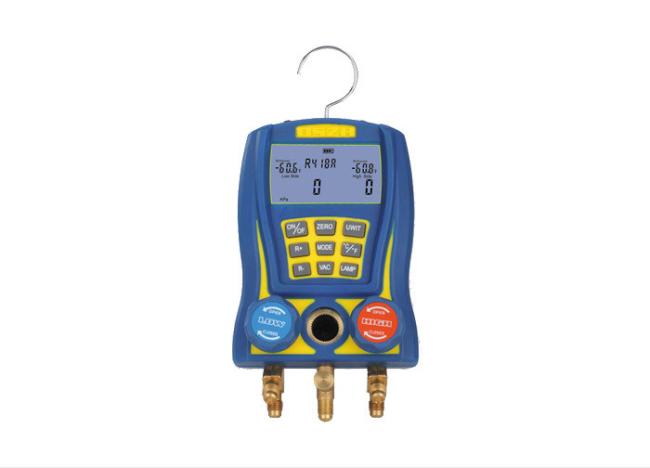

Digital Electronic Pressure Gauge Manifold as refrigerant equipment Mode no. WK6889

Specification:

Pressure units :KPA,INHG,KgF/cm2,PSI,Bar

Vacuum units:Torr,mmHg,Micron,%

Power:1.5V AA X 4=6V

Measuring range: Vacuum:-101 Kpa~0Kpa

Proof prsddure:0 MPa~6 MPa

Refrigerant pressure:0 MPa~4 MPa

Sensor resolution: 1 KPa

Sensor accuracy:±0.5%

Overload limit: 100Bar,10Mpa

Operating temperature:-20℃~+60℃

Sensor temperature range:-50C-150C(-58F-302F)

Temperature accuracy:<50C(+/-0.1C),>50-100C(+/0.2C),>100C(+/-1C)

Features

1.Switch between refrigerant pressure and vacuum.

2.Programmed with 88 refrigerant pressure and saturated temperature data taken from the latest NIST database.

3.Measuring Vacuum and shown in percentage.

4.Low battery indicator.Long battery life of 30 hours.

5.Show actual temperature,sub cooling,superheat,vacuum.

6.High resolution LCD with background lamp.

7.Low voltage DC 6V design.

8. Two way aluminum alloy manifold with diaphragm design.

9.Sensors: 2 pressure sensors and 2 temperature sensors.

10.Auto-off:15 min with disabling capability.

Q1: Can you provide sample?

A1: Yes, we can send the sample for free but not pay the sample freight.

Q2: What kind of Certificate do you have?

A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.

Q3: How are orders packed?

A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.

Q4: How long is the warranty of your products?

A4: We provide one year after-sale guarantee.

Q5: Can you produce the products labeled with the client's brand?

A5: OEM, ODM are supported.

Q6: What kind of payment terms do you accept?

A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
