Light Gantry CNC Plasma Profile Cutting Machine 5ft X 10ft Plasma Table Gantry
1500x3000mm Aluminum Profile Light Gantry CNC Plasma Cutting Machine for Metal Sheet
1. This aluminum profile gantry CNC Cutting Machine can cut any complex plane figures , equip with stepper motor and double side drive, It can match both flame torch and plasma cutter.
2. Aluminum Gantry CNC Cutting Machine consists of a support structure and a central control unit.The support structure composed of two longitudinal rails (Y Axis). with double side drive, much more stable.
The Central Control Unit, containing the electronics commands ,the control panel, the display and keyboard, moves on these rails and hold the cross beam (X-Axis) supporting the cutting torch.
3. CNC system adopts 7 "numerical control system, transformation in both Chinese and English. High accuracy arc pressure type automatically height control.
Technical Parameters
| Model | SNR-QL2 Al-profile light gantry CNC plasma |
| Cutting size | 1300x2500mm, 1500x3000mm |
| THC | F1621 auto torch height control for plasma |
| CNC controller | Fangling F2100B CNC controller |
| Drive Motor | Step motor, dual drive |
| Cutting thickness | plasma:depends on plasma source, flame:6-120mm |
| Cutting type | plasma+flame |
| Cutting speed | 0-6000mm/min(plasma), 0-700mm/min(flame) |
| Nest software | FastCAM or HiNest |
| Plasma Source | CHINA HUAYUAN or MISNCO |

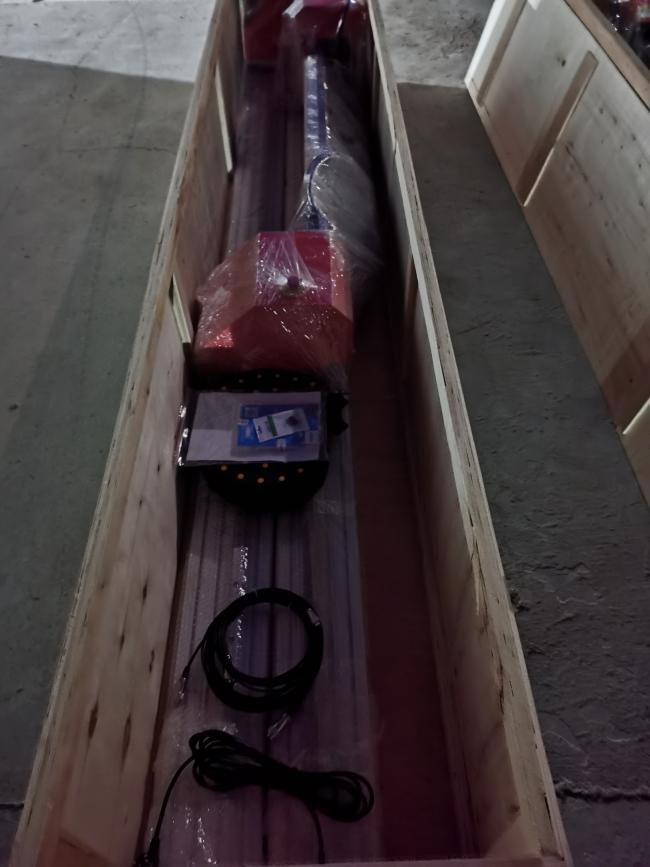

Package: export wooden case
Company information
Beijing Seigniory NC Equipment Co.,Ltd is a professional manuafacturer and exporter of CNC cutting machine. we have been in this CNC filed for more than 14 years. Our main products includes portable CNC,gantry CNC, CNC plasma table for metal sheet and steel pipes.
Since the estabilsh of our company, we have been sticking to the path of specialization and had many engineering technology staff members.
Our machines are widely used in automotive manufacturing, shipbuilding, fan manufacturing,mining equipment, steel processing, advertising cutting, enginerring machiney, agricultural machinery and other machinery manufacturing industry.
So far we have exported to many countries like Russia, France, UK, Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia, India and so on.
Our advantage
Our certificate
Shipping
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i should choose?
A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
