ABD Full-Automatic Blasting Metal Powder Coating Line Spraying Surface Pretreatment

Description Of Vertical Powder Coating Line

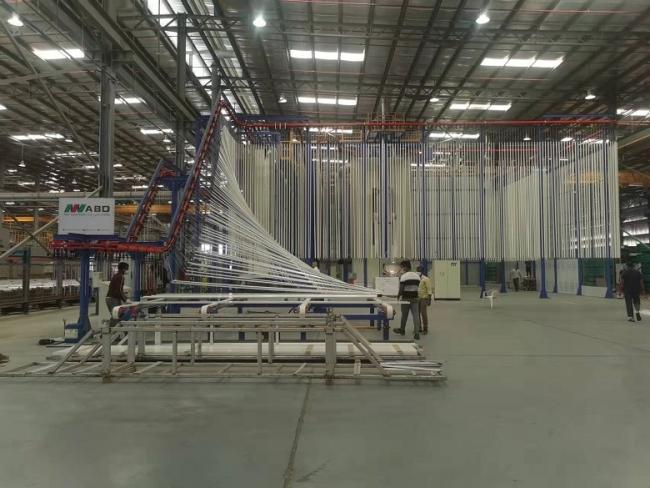

This red automatic powder coating line was designed for the customer who supply the powder coating services to the others.

The working process for this line is, loading --- spray type pre-treatment --- water drying --- automatic powder coating --- automatic powder curing --- cooling --- unloading.

Automatic chain system: 2 sets driving system and 2 tensioning system. Chain can bearing 100kg/single point. Chain speed, 2.5m/min (you can adjust according your need). Total length for the chain, 295m

Pre-treatment system: Stainless steel spray type.

Steps are, pre-degreasing --- degreasing --- water washing 1 --- pure water washing 2 --- nano ceremic --- water washing 1 --- pure water washing 2

Automatic water drying oven: this oven only have the temperature for 120 Celsius.

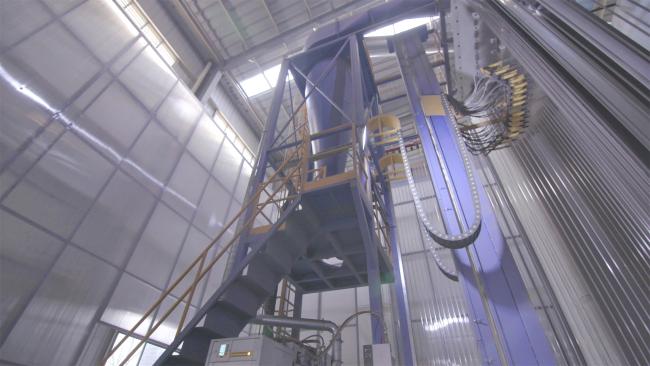

Automatic powder coating booth: the cyclone system will help you to recycle the 99.5% of the powder, and the material is PP type, it can allow you to change the color just in 15min. And the reciprocator and automatic gun will help you to do the automatic powder coating. There will be also 2 manual working station to making up the powder coating for some dead corner.

Automatic powder curing oven: powder curing oven have the temperature for 180~230 Celsius. The work piece can curing 20~30min just according your need.

Or

Quick detail Of Vertical Powder Coating Line

Specification Of Vertical Powder Coating Line
