Hydraulic Transmission Principle High Pressure Hydraulic Piston Pumps
Hydraulic Transmission Principle High Pressure Hydraulic Piston Pumps
Product Description:
Color: Black
Product Name: Hydraulic Piston Pumps
Max Pressure: 42Mpa
Package: Plywood Case
Type: Piston Pump
Are you in need of a high quality hydraulic pump for your machinery? Look no further than Highland Hydraulic Piston Pumps! Made with the finest materials and designed for maximum efficiency, Highland hydraulic piston pumps are the perfect choice for any industry.
With a maximum pressure of 42Mpa, Highland Hydraulic Piston Pumps can handle even the toughest tasks with ease. The black color adds a sleek and professional look to the pump, making it a great addition to any equipment.
Highland Hydraulic Piston Pumps come in a sturdy plywood case, ensuring safe and secure delivery to your doorstep. Highland piston pump design offers a smooth and consistent flow of hydraulic fluid, reducing the risk of any damages or malfunctions.
Choose Highland Hydraulic Piston Pumps for a reliable and durable solution to your hydraulic pump needs. Trust us to provide you with high quality products that are built to last. Order now and see the difference for yourself!
Features:
- Product Name: Hydraulic Piston Pumps
- Standard Export Package: Plywood Case
- Rated Pressure: 35Mpa
- Function: Hydraulic System Components
- Power Source: Hydraulic

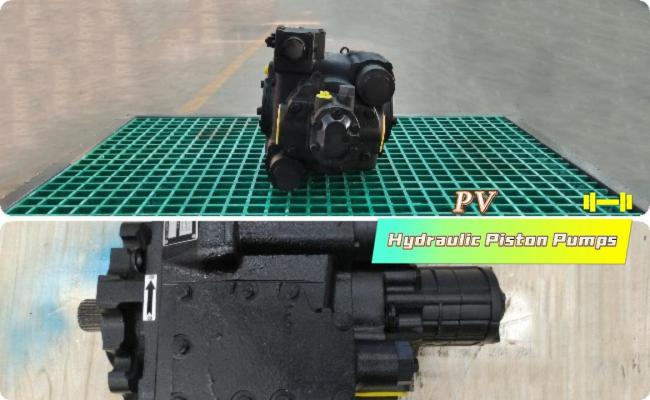

- HPV110 hydraulic pump
- piston pump for sale
- hydraulic piston pump
- hydraulic pump price
Technical Parameters:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
| Technical Parameters | Product Details |
|---|---|
| Hydraulic System | Closed Loop Hydraulic Pump |
| Application | Agricultural Harvester And Tractor |
| Rated Pressure | 35Mpa |
| Power Source | Hydraulic |
| Standard Export Package | Plywood Case |
| Color | Black |
| Type | Piston Pump |
| Pressure Range | High Pressure |
| Product Name | Hydraulic Piston Pumps |
| Warranty | 1 Year |
Applications:
Hydraulic piston pumps are essential components in hydraulic systems. They are used to convert mechanical energy into hydraulic energy, creating a high-pressure flow of fluid that can power various types of machinery. One such pump is the HIGHLAND HPV110, a high-pressure hydraulic piston pump designed and manufactured in CHINA DEZHOU.
The HIGHLAND HPV110 hydraulic piston pump has a wide range of applications, including:
- Industrial machinery - such as presses, cranes, and forklifts
- Construction equipment - including excavators, bulldozers, and loaders
- Agricultural machinery - such as tractors, harvesters, and sprayers
- Transportation vehicles - including trucks, buses, and trains
- Hydraulic power units - used in various industries for power generation
The HIGHLAND HPV110 hydraulic piston pump is a reliable and efficient solution for various high-pressure applications. Its quality, performance, and competitive pricing make it a popular choice in the hydraulic industry. With its compact design and powerful hydraulic power source, it is suitable for a wide range of applications, making it a valuable investment for any business or industry.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is HIGHLAND. - Q: What is the model number of this product?
A: The model number of this product is HPV110. - Q: Where is this product manufactured?
A: This product is manufactured in CHINA DEZHOU. - Q: Does this product have any certification?
A: Yes, this product has a PATENT CERTIFICATE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5 sets.
