High Efficient Automated Punching Machine Servo Flat Iron Ring Punching Machine
This type of looping machine is customized, and it needs to lift the standard drawing or physical object of the product. Customized as required.
Performance characteristics
1. Servo feeding - fast and accurate, speed adjustable. Oil pressure cut-off - large force, easy and powerful line cutting.
2. PLC programming + man-machine interface display, easy to operate and learn. High end servo + planetary reducer.
3. Precision CNC turning and milling. Gear, shaft, wire feeding wheel and other finishing, special hardening, surface grinding and polishing, high hardness, smooth and wear-resistant.
| Model | JQ2-6MM | JQ2-8MM | JQ2-10MM |
| Wire diameter range (MM) | Hard wire2-4 lexible cord2-6 | Hard wire2-6 Flexible cord2-8 | Hard wire2-8 Flexible cord2-10 |
| Servo device | 1KW+5B | 1.5KW+5B | 2.3KW+10B |
| Hydraulic device | 1.5KW | 2.2KW | 2.2KW |
| Maximum wire feeding speed(M/MIN) | 70 | 60 | 50 |
| Circle diameter range (MM) | 50-800 | 50-800 | 50-800 |
| Circle diameter Tolerance MM | ＜±0.3 | ＜±0.3 | ＜±0.3 |
| Axis | 2 | 2 | 4 |
| Dimension(CM) | 145*75*142 | 145*75*142 | 175*75*142 |

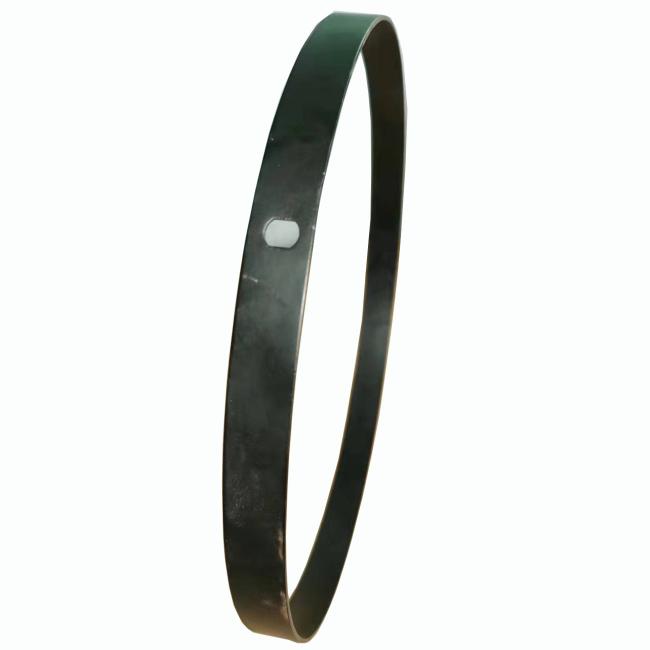

Multi function looping machine, widely used, can be used as long as it is a flat iron circle or a flat iron circular arc
