60HZ Iron Wire Bending Machine Butt Welding 2D Full Automatic Box
2D bending machine, full-automatic box butt welding machine
Alias:
Bending machine, bending and butt welding machine,
bending frame + butt welding machine,
2D bending machine,
2D folding frame machine,
Technical parameter
| Model | J2DDH2-6MM | J2DDH2-8MM | J2DDH-Y-2-8MM |
| Number axes | 4 | 4 | 3 |
| Processing line diameter(MM) | Hard wire ø2-4 | Hard wire ø2-6 | Hard wire ø2-8 |
| Flexible cord ø2-6 | Flexible cord ø2-8 | Flexible cord ø2-10 | |
| Number of delivery wheels (Group) | 3 | 3 | 3 |
| Control system | 32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 | 32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 | 32-bit high-performance processor, can store 2048 files, programming accuracy 0.01 |
| Maximum wire speed(M/MIN) | 80 | 70 | 60 |
| Movement direction | rotating die can be raised and lowered, and the positive and negative motion can be realized | rotating die can be raised and lowered, and the positive and negative motion can be realized | rotating die can be raised and lowered, and the positive and negative motion can be realized |
| Wire delivery accuracy(mm) | ±0.1 | ±0.1 | ±0.1 |

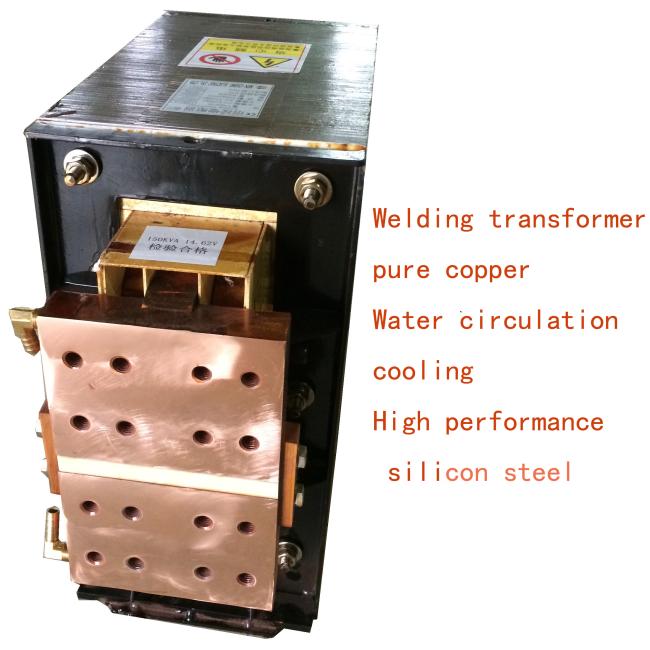

| Power of butt welding transformer | water-cooling 50KVA | water-cooling 60KVA | water-cooling 50KVA |
| Solenoid valve and quantity | Taiwan Air TAC 15 | Taiwan Air TAC 15 | Taiwan Air TAC 12 |
| Input power | 380V,50/60HZ | 380V,50/60HZ | 380V,50/60HZ |
widely used
(1) Daily hardware: kitchen display rack, shelf, egg laying device, cabinet basket, refrigerator rack, toilet rack.
(2) Wire craft products, lighting molding products, fishing gear parts products, wine rack, family fruit tray, garden flower rack, Christmas wire gifts.
(3) All kinds of cage processing: bird cage, dog cage, pet cage, breeding cage, rat cage, etc. Hanger, shoe hanger, curtain hook, shelf hook, display hook, etc
