Automatic Polishing Robot Grinding Machine Flexible High Precision

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 5-10 days or negotiation

Brand: Jin Hongxiang

Product Description

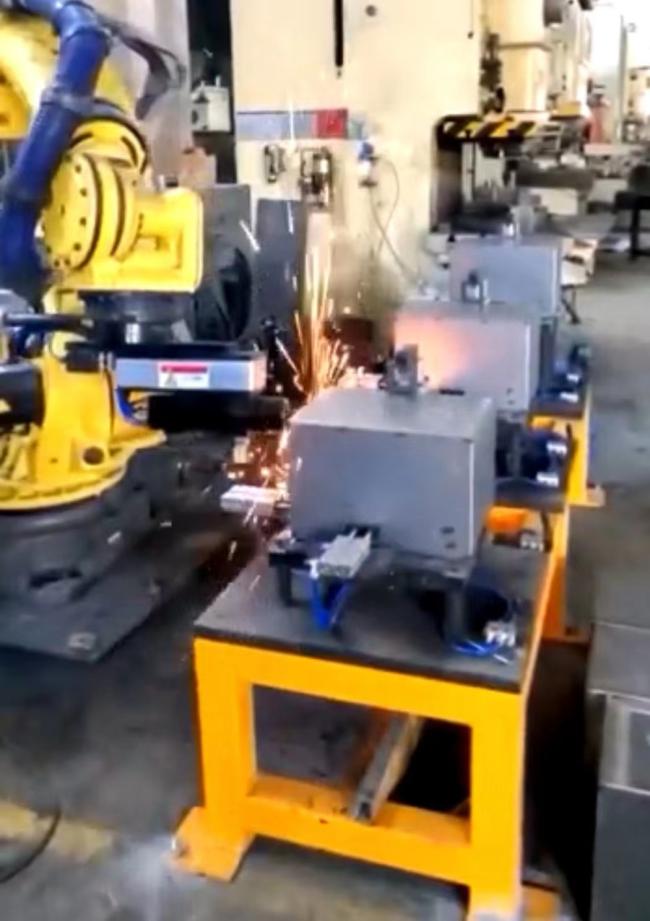

Grinding robot Automatic grinding and polishing

Application characteristics
Keep the consistency of product processing accuracy, ensure reliable quality and reduce scrap rate;
Robots work instead of operators, and operators do not directly contact dangerous processing equipment

to avoid industrial accidents;
Redevelopment, users can conduct secondary programming according to different parts,

shorten the cycle of product upgrading and reduce the corresponding equipment investment.

Welding workpiece

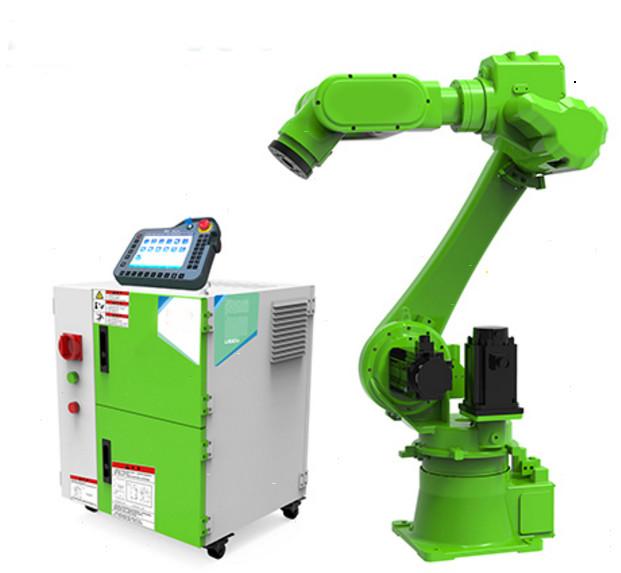

ROBOT BODY TECHNICAL PARAMETERS

Model		CRP-RH14-10-W
Arm form		Vertical multiple joints
Degree of freedom		6 axis
Maximum payload		10KG
Repeated positioning accuracy		±0.08mm
Maximum reaching distance		1454mm
Robot body weight		170KG
Installation mode		Ground,upside down mounting,wall mounting
Maximum travel	axis 1	Ground/upside down mounting-167°~167°,wall mounting -30°~30°
	axis 2	-155°~90°
	axis 3	-175°~240°
	axis 4	-190°~190°
	axis 5	-105°~130°
	axis 6	-105°~130°
Maximum axis speed	axis 1	169°/s
	axis 2	169°/s
	axis 3	169°/s
	axis 4	301°/S
	axis 5	220°/s
	axis 6	743°/S
Allowable torque	axis 4	20N.m
	axis 5	5 20N.m
	axis 6	11N.m
Allowable moment of inertia	axis 4	0.5kg.m2
	axis 5	0.5kg.m2
	axis 6	0.16kg.m2
Installation environment	ambient temperature	0~45℃
	relative humidity	20~80%(No condensation)
	vibration	Under 0.5G
	Others	Robot installation must be away from: Flammable or corrosive liguids or gases . Electrical sources of interference
Ip level		Body IP54,wrist IP67
Advantage features		Compact structure,high speed,high precision,high expansibility and easy operation,
Application		Welding.cutting.assembly.handling, marking.grinding
