2000W 150 Ohm J High Power Resistor Wirewound Damping ZENITHSUN
2000W 150 Ohm J High Power Wirewound Damping Ressistors for Servo
Structure
1.High Power,Small Size & Fast Heat Dissipation,multi-tap and non-inductive winding are available.
2.Can be combined to be arranged in the load banks.
3.Our high power resistor personalized design to better meet your requests,so as to greatly save space and cost.
Features
1.The product has the characteristic with solid structure,small volume and high power.
2.It is an ideal product in high impact and long-term load environment & also be applied to the solution of load banks.
3.The resistance wire of high power resistors select iron chromium aluminum, nickel chromium wire or constantan wire with high temperature resistance, stable electrical performance and small temperature drift coefficient.
4.HDR,HDB and DHZ spring shape high-power resistors are made of high-temperature resistant ceramic tube as the matrix,the resistance wire is processed into a spring shape and wound in a fixed wire slot,and the leading out is stainless steel end piece.
Specification
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±100～±250PPM/℃ |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s | △R≤±(0.2％+0.1Ω) |
| Dielectric Withstand Voltage | 2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ; 2 times Rated Power Voltage +2kv AC 60s (with grounding), leakage current 2.5mA ; |
△R≤±(0.1％+0.05Ω) |
| Insulation Resistance | 500V DC | ≥10GΩ1Min |
| Terminal Tensile Strength | 40N | No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |
Applications
Widely used in industrial control,servo and harsh environment .

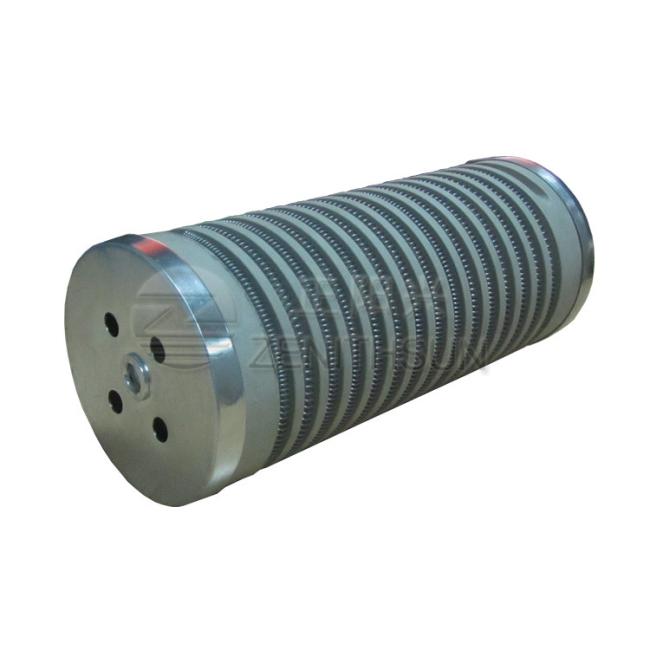

Products Image
