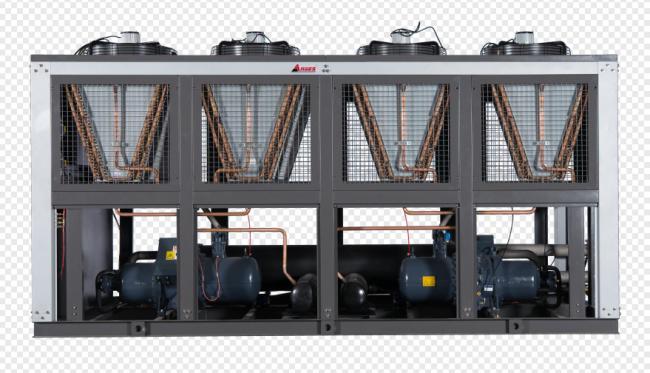

100Ton One Compressor Screw Chiller Injection Molding Machine Industrial Refrigerator
The 100-ton screw compressor chiller is a high-efficiency industrial refrigeration unit designed for injection molding machines. Utilizing its dual screw compressors, it delivers robust cooling performance, maintaining stable temperatures during the molding process and boosting production efficiency. Ideal for various industrial settings, especially in high-temperature plastic processing environments, this chiller effectively reduces the temperature of both machinery and products. With its exceptional performance and reliability, it is a top choice for many manufacturing operations.
Features and Functions
1.World famous brand new type and high-efficient screw-rotor compressor, with efficiency 20-30% higher than those common ones. It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.
2.Designed with efficient silicon steel and special slots, and equipped with the inside and outside all around design to cool the flow channel to ensure maximum efficiency of the compressor motor under any load.
3.High efficiency double filttration oil separator ensures maximum heat exchange.
4.Efficient, low noise and small vibration.
Specification
Technical Parameter of AGS-120ADH Air Cooled Screw Type Chiller
|
Model Parameter |
AGS-120ADH | |
| nominal cooling capacity | kcal/h | 329208 |
| kw | 382.8 | |
| input power | kw | 113 |
| max running current | A | 256.4 |
| power supply | 3PH~380V 50HZ | |
| refrigerant | type | R22 |
| refrigerating circuit | 2 | |
| type of control | thermostatic expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 2 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| evaporator | type | shell and tube |
| quantity | 1 | |
| chilled fluid flow (m3/h) | 65.8 | |
| inlet and outlet pipe diameter (inch) | 4 | |
| condenser | type | air cooled type finned copper tube |
| cooling air flow(m3/h) | 122000 | |
| power(kw) | 6 | |
| safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, antifreezing | |
| net weight | kg | 3850 |
| running weight | kg | 4120 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃
Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 30℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
Temperature difference between inlet and outlet cooling air is from 8℃ to 12℃.
The machine can be used while the ambient temperature is below 38℃.
We reserve the right to modify the above dimensions or parameters without further notice.
