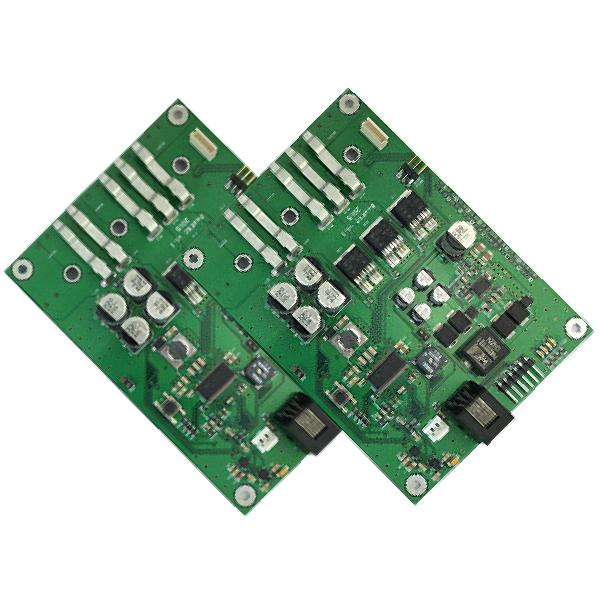

6-Layer PCB Manufacturing For Automotive Electronics
PCB Manufacturing Description:
Our 6-layer PCB manufacturing services for automotive electronics offer a comprehensive range of options to meet your specific needs. Our experienced team of technicians is dedicated to providing you with a product that meets your exact specifications. We support high-layer, multi-layer, rigid-flex, high-frequency, and high-speed boards, and we use advanced manufacturing techniques and quality control measures to ensure that your boards are manufactured to the highest standards.
PCB Manufacturing Parameters:
| Item | Technical Parameter |
| Layer | 2-64 |
| Thickness | 0.3-6.5mm |
| Copper Thickness | 0.3-12 oz |
| Min Mechanical Hole | 0.1mm |
| Min Laser Hole | 0.075mm |
| HDI | 1+n+1,2+n+2,3+n+3 |
| Max Aspect Ratio | 20:01 |
| Max Board Size | 650mm*1130mm |
| Min Width/Space | 2.4/2.4mil |
| Min Outline Tolerance | ±0.1mm |
| Impedance Tolerance | ±5% |
| Min PP Thickness | 0.06mm |
| Bow &Twist | ≤0.5% |
| Materials | FR4, High-Tg FR4, Rogers, Nelco, RCC, PTFE, M4, M6, TU862, TU872 |
| Surface Finished | HASL, HASL Pb Free Immersion Gold/Tin/Silver Osp, Immersion Gold+OSP |
| Special Capability | Gold Finger Plating, Peelable, Carbon ink |
PCB Manufacturing Introduction:
Tongzhan has always adhered to the principle of the customer first. We serve customers, and customers are always the first. Customer-centric, diligent, innovative, honest, happy, and transparent; Customer-centric, professional, efficient, and win-win.
Our people are passionate, passionate about science, and passionate about technology, and we are all passionate about building a company that is known all over the world.
FAQ:
Q: Do you have MOQ restrictions?
We do not have any limit on order quantity and can support samples and mass production. The specific situation depends on the needs of customers and can be communicated with the staff.
Q: What are the special capabilities of printed circuit board assembly?
Gold finger, peelable, carbon ink.
