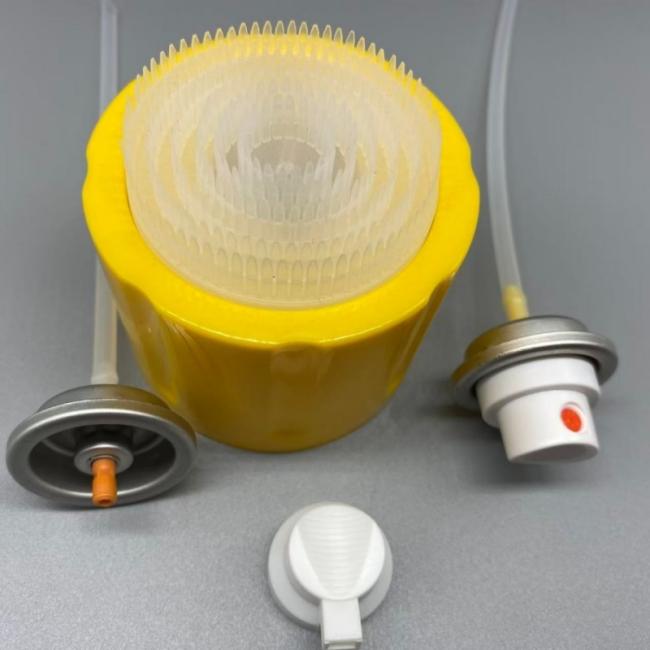

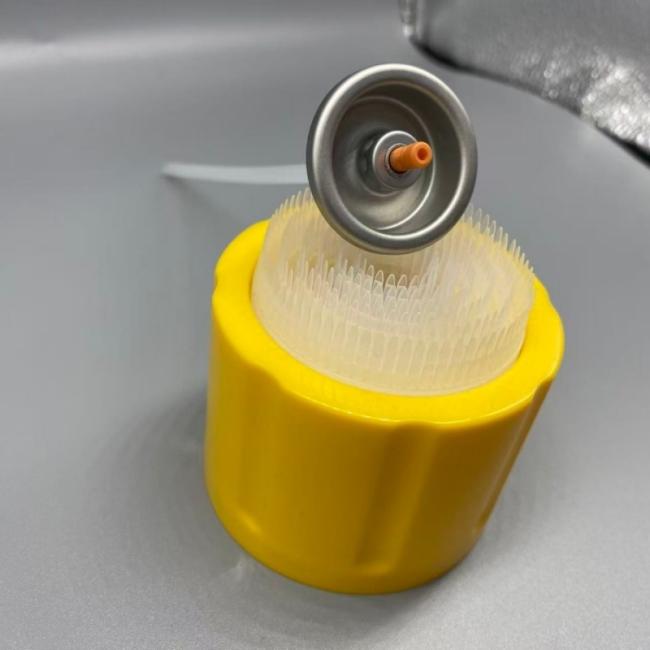

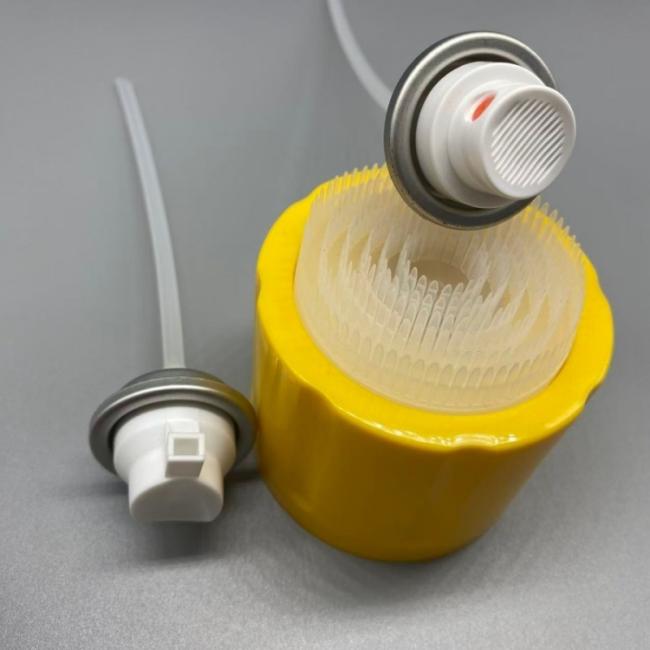

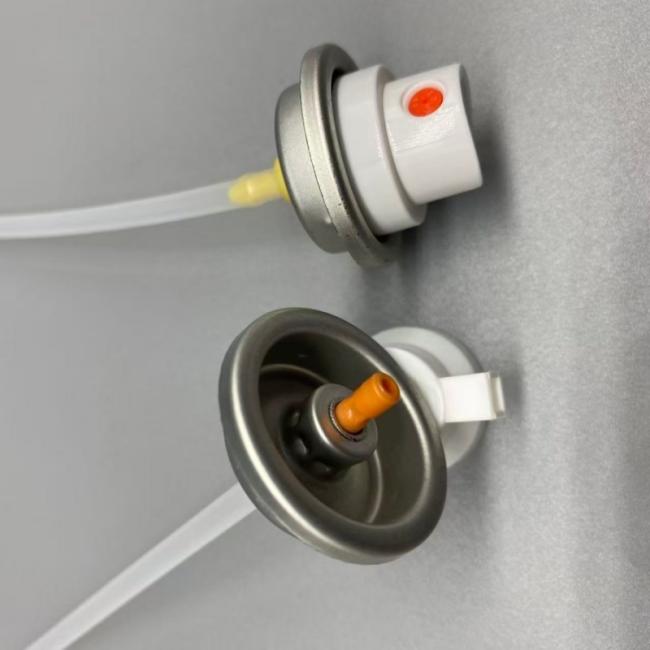

Multi-Purpose Foam Spray Valve with Integrated Brush Cap for Consistent Dispensing and Customizable Actuator
This aerosol valve combined with a specially designed brush cap offers an efficient and user-friendly solution for foam cleaner applications. It ensures smooth and controlled foam dispensing while the integrated brush cap allows users to scrub surfaces directly during application, improving cleaning performance and reducing effort.
Ideal for automotive interior care, upholstery cleaning, carpet maintenance, and household surface cleaning, this system enhances product functionality and end-user experience.
The valve provides consistent spray output and excellent sealing performance, while the brush cap is ergonomically designed for durability and effective scrubbing without damaging surfaces.
- Smooth and consistent foam dispensing
- Integrated brush cap for scrub + spray function
- Improves cleaning efficiency and user convenience
- High compatibility with standard aerosol cans
- Suitable for automotive and household cleaning
- Customizable actuator and brush design
| Parameter | Specification |
|---|---|
| Product Name | Foam Cleaner Aerosol Valve with Brush Cap |
| Valve Type | Continuous Spray Foam Valve |
| Mounting Cup | Tinplate, both sides lacquered |
| Cup Diameter | 25.4 mm (1 inch standard) |
| Cup Thickness | 0.30 mm / Customizable |
| Stem Orifice | 0.33 mm / 0.46 mm / Customizable |
| Body Orifice | 0.40 mm / 0.51 mm / Customizable |
| Gasket Material | Buna-N / Neoprene / Butyl |
| Spring | Stainless Steel |
| Housing | Polyacetal (POM) |
| Dip Tube | PE (Polyethylene), length customizable |
| Discharge Rate | 3.0 – 5.0 g/s (depending on formulation) |
| Spray Pattern | Foam Output |
| Actuator Type | Foam Actuator Compatible |
| Cap Type | Brush Cap (PP + Nylon Bristles) |
| Cap Color | Customizable |
| Compatibility | Standard Aerosol Cans |
| Application | Car Care, Upholstery, Carpet, Household Cleaning |
| OEM Service | Available |
- Car seat foam cleaner spray
- Carpet stain remover aerosol
- Fabric sofa cleaner foam spray
- Leather seat cleaner aerosol
- Tire and trim foam cleaner
1. What is the main use of this aerosol valve with brush cap?
It is designed for foam cleaner products where users can spray foam and scrub the surface at the same time.
2. Which industries use this product?
Mainly automotive care, household cleaning, upholstery care, shoe care, and industrial cleaning products.
3. Can the brush cap color be customized?
Yes, cap color can be customized according to your brand requirements.
4. Is the valve compatible with standard aerosol cans?
Yes, it is designed for standard 25.4 mm aerosol cans.
5. What gasket materials are available?
We offer Buna N, Neoprene, and Butyl depending on chemical compatibility.
6. Do you provide OEM or private label solutions?
Yes, we support OEM production, custom colors, packaging, and technical matching.
7. Can I request samples before bulk order?
Yes, samples are available for testing before mass production.
