Low Pressure Pm Air Compressor 55kW 75hp Energy Saving For Textile Industry
Price:
Negotiate
MOQ:
1set
Delivery Time:
25days
Brand:
DHH
Product Description

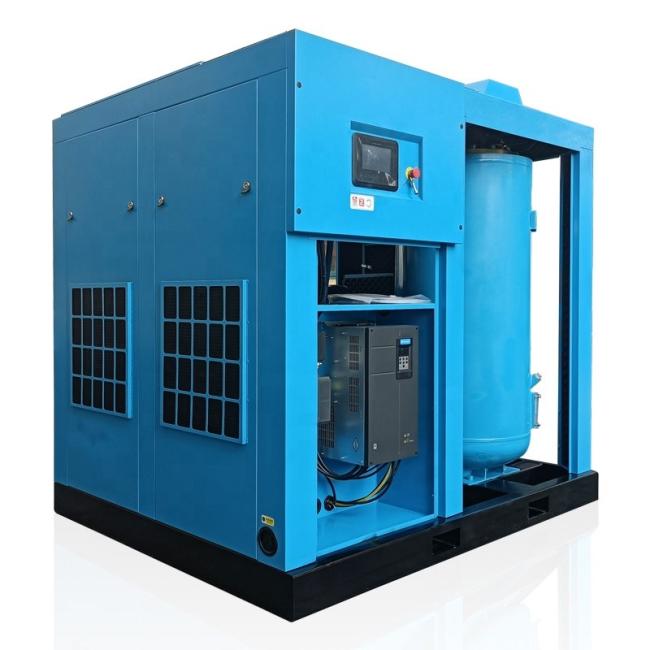

55kW 75hp Low Pressure PM Screw Air Compressor for Textile Industry
Model:DHH55LM
Air delivery: 12~21m³/min
Working pressure: 2~5bar
Power:55kw 75hp
Motor:Suma
Air end:HANBELL/JIUYI
Noise:72db
Dimension:2000*1677*1892mm
Weight:2000kg
Transmiss method:driven
Oil content:≤3ppm
Starting method:Frequency conversion start
Control method:Intelligent controls
Lubricant quantity:50L
Outlet temperature:Ambient temperature+15°C
Ooncuss:≤7mm/s
Technical Parameters
DHH LMH series variable frequency oil-less screw compressors are lower noise, coupling high efficiency, reliable quality.
Shanghai DHH screw compressor features:
1. perfect performance
2. microcomputer controller
3. dhh screw compressor OEM acceptablee
Welcome to visit our factory!
Low-pressure permanent magnet variable frequency air compressor parameters:
Shanghai DHH screw compressor features:
1. perfect performance
2. microcomputer controller
3. dhh screw compressor OEM acceptablee
Welcome to visit our factory!
Low-pressure permanent magnet variable frequency air compressor parameters:
| Model | Volume flow(m3/min) | Pressure(Mpa/bar) | Power(kW) | Noise(DB) | Outlet diameter | Dimension(mm) | Weight(kg) |
| DHH37LM | 12.8 | 0.2/2 | 37 | 65 | DN100 | 2100*1677*1892 | 2300 |
| 10.0 | 0.3/3 | ||||||
| 9.6 | 0.4/4 | ||||||
| 8 | 0.5/5 | ||||||
| DHH45LM | 15.1 | 0.2/2 | 45 | 65 | DN100 | 2100*1677*1892 | 2500 |
| 12.2 | 0.4/4 | ||||||
| 9.3 | 0.5/5 | ||||||
| DHH55LM | 22 | 0.2/2 | 55 | 70 | DN150 | 2800*1860*1900 | 3200 |
| 15.61 | 0.3/3 | DN100 | 2100*1677*1892 | 2600 | |||
| 15.48 | 0.4/4 | ||||||
| 12.00 | 0.5/5 | ||||||
| DHH75LMH | 29.5 | 0.2/2 | 75 | 70 | DN150 | 2800*1860*1900 | 3200 |
| 21.5 | 0.3/3 | ||||||
| 21.0 | 0.4/4 | ||||||
| 16.1 | 0.5/5 | DN65 | 2400*1630*1980 | 1850 | |||
| DHH90LMH | 31.0 | 0.2/2 | 90 | 72 | DN150 | 2800*1860*1900 | 3300 |
| 28.8 | 0.3/3 | ||||||
| 21.0 | 0.5/5 | ||||||
| DHH110LMH | 37.0 | 0.2/2 | 110 | 72 | DN200 | 2900*2100*2150 | 4800 |
| 33.0 | 0.3/3 | ||||||
| 28.5 | 0.4/4 | ||||||
| DHH132LMH | 47 | 0.2/2 | 132 | 78 | DN200 | 2900*2100*2150 | 4950 |
| 43.8 | 0.3/3 | ||||||
| 32.5 | 0.4/4 | ||||||
| 28.3 | 0.5/5 | DN80 | 2800*1828*2150 | 3600 | |||
| DHH160LMH | 55.7 | 0.2/2 | 160 | 78 | DN300 | 4500*2200*2200 | 6800 |
| 49.4 | 03/3 | DN200 | 2900*2100*2150 | 5100 | |||
| 43.0 | 0.4/4 | ||||||
| DHH185LMH | 60.0 | 0.3/3 | 185 | 78 | DN200 | 4500*2200*2200 | 6900 |
| 43.0 | 0.5/5 |
Note:A represents air-cooling type
Working environment temperature: 2 °C ~ 45 °C;
The exhaust temperature is less than environment temperature about + 10 °C ~ 15 °C.
Driving mode: belt transmission;
Startup mode: Y-Δ start ;
Work power: 380V / 50HZ 3 phase 4wire type;
F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853).
![]()
![]()
Packaging & Shipping
Export package, by plywood case, before packing, the air compressors will be covered by pp film, and bottom fixed by nails to fasten it.
Working environment temperature: 2 °C ~ 45 °C;
The exhaust temperature is less than environment temperature about + 10 °C ~ 15 °C.
Driving mode: belt transmission;
Startup mode: Y-Δ start ;
Work power: 380V / 50HZ 3 phase 4wire type;
F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853).
Packaging & Shipping
Export package, by plywood case, before packing, the air compressors will be covered by pp film, and bottom fixed by nails to fasten it.
FAQ
1.Why customer choose us?
DHH COMPRESSOR JIANGSU CO.,LTD.with 23 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.
3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
4.What's your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.
5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines
6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
7.How long could your air compressor be used?
Generally, more than 10 years.
8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.
1.Why customer choose us?
DHH COMPRESSOR JIANGSU CO.,LTD.with 23 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.
3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
4.What's your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.
5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines
6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
7.How long could your air compressor be used?
Generally, more than 10 years.
8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.
