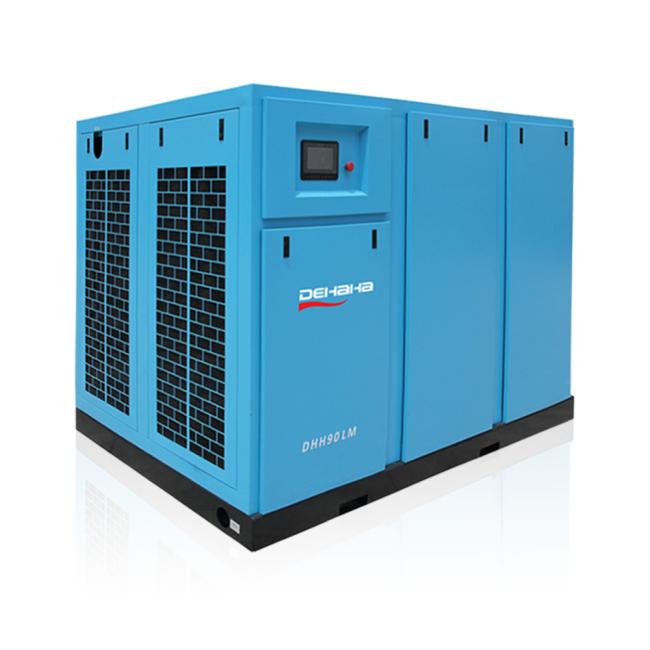

5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
3 bar to 5 bar Low Pressure Air Compressor 22kw high capacity air compressor
Our Factory has been in air compressors industry for 26 years, now we have fixed speed (belt driven), fixed speed (direct driven) screw air compressors; VSD variable speed frequency screw air compressors, inverter compressors work very good and save electricity. Besides we also have the newest technology for permanent magnet frequency screw air compressors, this new technology screw air compressor super environmental and save energy, quite lower noise, almost mute, best choice if your work shop have high request of environment.
Welcome to choose us as your partner and best supplier!
Technical parameters
Low-pressure permanent magnet variable frequency air compressor parameters:
| Model |
Volume flow (m3/min) |
Pressure (Mpa/bar) |
Power (kW) |
Noise (DB) |
Outlet diameter | Dimension(mm) |
Weight (kg) |
| DHH37LM | 10.0 | 0.3/3 | 37 | 65 | G2 | 2000*1120*1590 | 1180 |
| 9.6 | 0.4/4 | ||||||
| 8 | 0.5/5 | ||||||
| DHH45LM | 15.1 | 0.2/2 | 45 | 65 | G2 | 2100*1677*1892 | 2500 |
| 12.2 | 0.4/4 | ||||||
| 9.3 | 0.5/5 | ||||||
| DHH55LM | 22 | 0.2/2 | 55 | 70 | DN150 | 2800*1860*1900 | 3200 |
| 15.61 | 0.3/3 | DN100 | 2100*1677*1892 | 2600 | |||
| 15.48 | 0.4/4 | ||||||
| 12.00 | 0.5/5 | ||||||
| DHH75LMH | 29.5 | 0.2/2 | 75 | 70 | DN150 | 2800*1860*1900 | 3200 |
| 21.5 | 0.3/3 | ||||||
| 21.0 | 0.4/4 | ||||||
| 16.1 | 0.5/5 | DN65 | 2400*1630*1980 | 1850 | |||
| DHH90LMH | 31.0 | 0.2/2 | 90 | 72 | DN150 | 2800*1860*1900 | 3300 |
| 28.8 | 0.3/3 | ||||||
| 21.0 | 0.5/5 | ||||||
| DHH110LMH | 37.0 | 0.2/2 | 110 | 72 | DN200 | 2900*2100*2150 | 4800 |
| 33.0 | 0.3/3 | ||||||
| 28.5 | 0.4/4 | ||||||
| DHH132LMH | 47 | 0.2/2 | 132 | 78 | DN200 | 2900*2100*2150 | 4950 |
| 43.8 | 0.3/3 | ||||||
| 32.5 | 0.4/4 | ||||||
| 28.3 | 0.5/5 | DN80 | 2800*1828*2150 | 3600 | |||
| DHH160LMH | 55.7 | 0.2/2 | 160 | 78 | DN300 | 4500*2200*2200 | 6800 |
| 49.4 | 03/3 | DN200 | 2900*2100*2150 | 5100 | |||
| 43.0 | 0.4/4 | ||||||
| DHH185LMH | 60.0 | 0.3/3 | 185 | 78 | DN200 | 4500*2200*2200 | 6900 |
| 43.0 | 0.5/5 |
Q1. Are you trading company or manufacture ?
A: We are professional manufacture of screw air compressor of Qidong(Close to Shanghai), China, more than 24 years.Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.
Q8. How do you control quality ?
A: 1.The raw materials are strictly inspected
2. Some key parts are imported from overseas
3.Each compressor must pass at least 5 hours of continuous testing before leaving the factory.
Q9. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.
