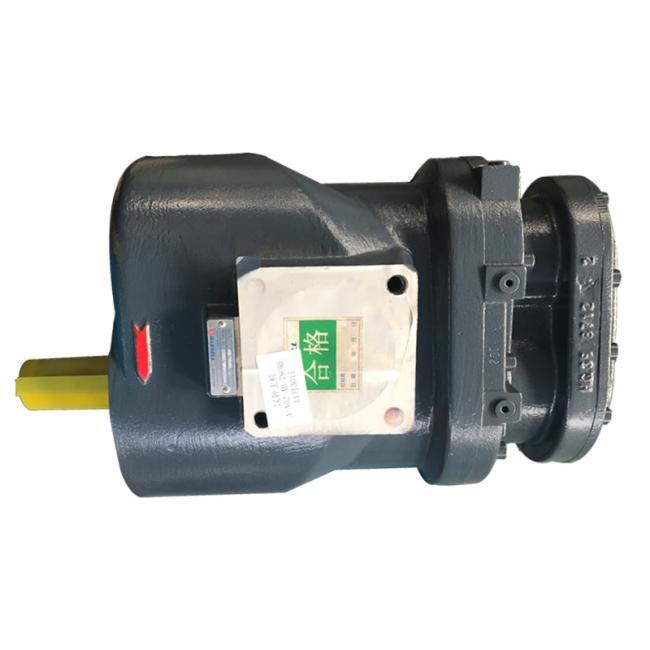

100HP 75kW Screw Compressor Air End AB 780 Hanbell Air End
AB-780 Hanbell Air End for 100HP 75kW Screw Air Compressor Machines
- Taiwan Hanbell Original
- Long life warranty
- Stable running
- Big flow rate
- All series of Hanbell screw air end,we have them all in stock, including AA,AB(6pcs bearings),AC( 4 pcs bearings).
Technical Parameters
| Model | AB-077 | AB-130 | AB-240 | AB-350R | AB-420 | AB-480R | AB-600R | AB-780R |
| Output Power(kW) | 5.5~15 | 11~22 | 18.5~37 | 30~55 | 30~55 | 45~75 | 45~75 | 55~110 |
| Maximum air volume (m3 / min) | 2.5 | 4.6 | 6.4 | 8 | 10.8 | 12.5 | 14 | 18 |
| Maximum speed of male rotor (rpm) | 8000 | 6000 | 5500 | 4500 | 5000 | 5000 | 4500 | 4500 |
| Maximum exhaust temperature (° C) | 110 | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
| Maximum exhaust pressure (Mpa) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Weight (kg) | 25 | 40 | 64 | 118 | 109 | 145 | 155 | 195 |
We also have BAOSI, ROTORCOMP brands,pls contact with us to get more info.
1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.

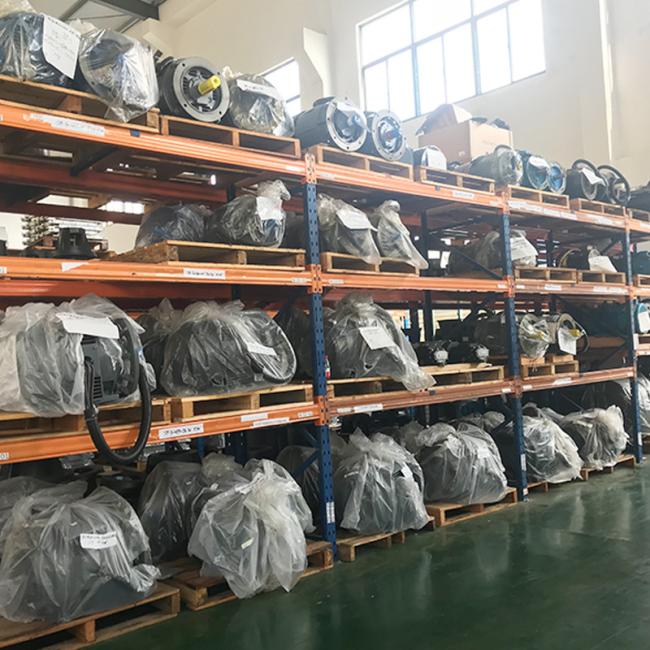

5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.
FAQ
Q1:Are you factory or trading company?
A1: We are factory.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.
Q4: Warranty terms of your machine?
A4: Two years warranty for Air End, one year for spare part.
Q5: How long will you take to arrange production?
A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.
Q6:How does your factory do regarding quality control?
A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
Q7: Can you accept OEM orders?
A7: Yes, with professional design team, OEM orders are highly welcome.
