5.5 Kw Fixed Speed Small Screw Compressor 380V 440V / 50hz
vsd screw compressor with Super Premium Efficiency PM Motor (IE4 equivalent) Oil-cooled motor.
Advantages of double screw compressor:
*Reduce energy consumption
Model: DHH7EV
Free air delivery: 300-700L/min
Working pressure: 8-12.5 bar
Screw air end rotor lobe: 5:6
screw air end: WITH 6BEARING
Control: PLC
Driven: direct
Cooling: by air
Electric motor: Permanent Magnet type 5.5KW/7HP, protection level IP65, oil cooling
Discharge temperature: less than ambient +8 ℃
Noise: less than 65 dB(A)
Air outlet size: G1/2”
Dimension:800*540*755mm
Weight: 236kg

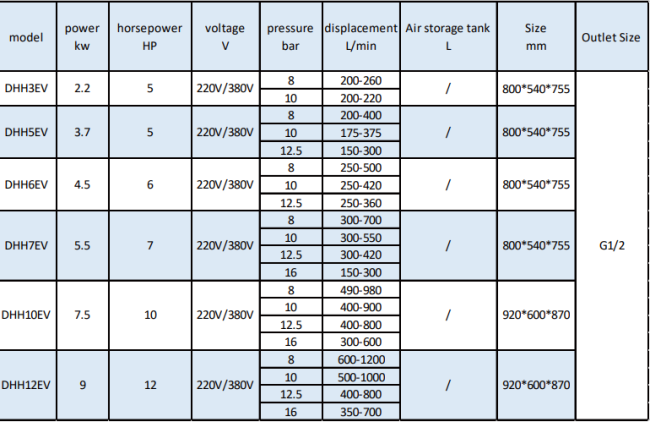

SPECIFICATION TABLE

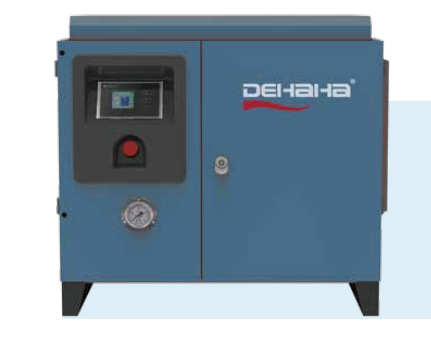

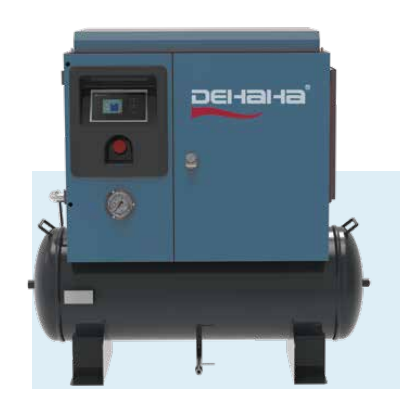

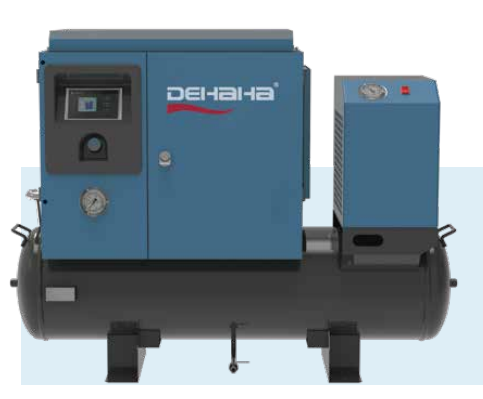

PICTURES :
Q1:Are you factory or trading company?
A1: We are factory.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.
Q4: Warranty terms of your machine?
A4: Two years warranty for Air End, one year for spare part.
Q5: How long will you take to arrange production?
A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.
Q6:How does your factory do regarding quality control?
A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
Q7: Can you accept OEM orders?
A7: Yes, with professional design team, OEM orders are highly welcome.
