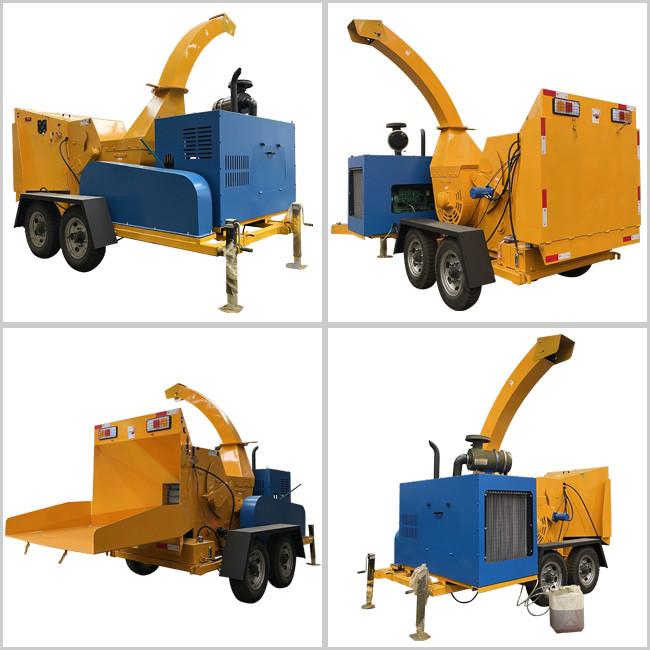

Branch Crusher with Dynamic Knife 3pieces and Fixed Knife 1piece

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 15-35days

Brand: KELI

Product Description

Branch Crusher with Dynamic Knife 3pieces and Fixed Knife 1piece

Model		HY-6130	HY-6145
Cutter diameter	(mm)	300	500
Matching power		32HP diesel engine	R4105Z Turbocharged (74kw)
Feeding stall		In-Stop-Reverse, 3 gears manual control	In-Stop-Reverse, 3 gears manual control
Host speed	(r/min)	2200	1800
Generator power	(W)	600	600
Cutter length	(mm)	300	230
Feeding roller diameter	(mm)	280	600
Discharge height	(m)	2.5	4
Productivity	(t/h)	1-2	3-5
Feeding throat size	(mm)	300*200	450*380
Battery specifications		12V 105AH	24V 105AH
Machine weight	(kg)	800	2800
Start-up method		Electric start	Electric start
Discharge system		Free 360° rotation with automatic injection discharge	Free 360° rotation with automatic injection discharge
Cutting System		Rolling longitudinal cutting	Rolling longitudinal cutting
Mobile form		Foldable hand crank jack, slipper type	Foldable hand crank jack, slipper type
Number of cutters		Dynamic knife 3 pieces fixed knife 1 piece	Dynamic knife 6 pieces fixed knife 1 piece

Product Advantage

Hydraulic feeding system	The pressure roller is automatically adjusted in height and hydraulically fed, with reasonable structure and automatic feeding, which is safe and convenient.
High strength tooth roll	It has the characteristics of wear resistance and high temperature resistance, which increases the stability and reliability of the machine, prolongs the service life and increases the operating efficiency.
Brand car hub wheel	Equipped with branded car wheel tires, which are durable and reliable.
Manganese steel hob	The blade is made of manganese steel. The knife is tough, wear-resistant, sharp in cutting, not easy to rust, corrosion-resistant, and has a longer service life than ordinary steel knives.

Scope of application	It is widely used in various occasions with strong adaptability.
	It is mainly used for cattle and sheep feed, edible fungus base material, returning to the field for fertilizer, mechanism charcoal, Buddha incense factory, wood factory, mushroom cultivation.

Performance characteristics	Traction type mobile, fearless of a variety of terrain, strong adaptability
	Air flow impact, strong power, complete crushing.
	Reasonable structure, simple operation, 360° automatic material spray
	Real material, solid and durable, beautiful appearance
