Mill Crusher High Pressure High Compression Roller Mill Raymond Mill
Mill Crusher High Pressure High Compression Roller Mill Raymond Mill
| Model | Roller |
Roll Dia. (mm) |
Roll Ring Size (mm) |
Max. Input Size (mm) |
Output Size (mm) |
Capacity T/Shaft |
Power (Kw) |
Dimension | |
| KL-3R | 1510 | 3 | 150*100 | 570*100 | 15 | 0.125-0.044 | 0.8-10 | 7.5 |
3200*1200*3800 |
| 2115 | 3 | 210*150 | 630*150 | 15 | 0.125-0.044 | 1-12 | 15 |
3500*3300*4500 |
|
| 2615 | 3 | 260*150 | 780*150 | 20 | 0.125-0.044 | 1.5-20 | 18.5 |
4650*3600*5100 |
|
| 2715 | 3 | 270*150 | 830*150 | 20 | 0.125-0.044 | 2-28 | 22 |
4700*3600*5100 |
|
| 3015 | 3 | 300*150 | 875*150 | 25 | 0.125-0.044 | 2-35 | 30 |
5300*4100*5200 |
|
| KL-4R | 3016 | 4 | 300*160 | 890*160 | 25 | 0.125-0.044 | 3-36 | 30 |
5400*4100*5200 |
| 3216 | 4 | 320*160 | 970*160 | 25 | 0.125*0.044 | 4-45 | 37 |
7100*5900*7900 |
|
| 3220 | 4 | 320*200 | 970*200 | 25 | 0.125-0.044 | 4-55 | 45 |
9900*5800*1058 |
|
| KL-5R | 4119 | 5 | 410*190 | 1270*190 | 30 | 0.613-0.044 | 8-60 | 75 |
9200*7250*9700 |
|
Advantages 1. Stable rotation, reliable operation Raymond mill host transmission device adopts sealed gear box and belt wheel, smooth transmission, reliable operation. 2. High sieving rate Compared with other milling equipment, it has a high through-screening rate, which is up to 99%, and is generally unattainable by other milling equipment. 3. Long service life of wearing parts The materials of wearing parts are high manganese steel, long service life, and the motors are national standard products. |
|
Machine component:mainframe, separator, blower, finished powder cyclone collector, bag filter and connecting pipes, etc.Processed Materials: Limestone, calcite, barite, dolomite, potassium feldspar, marble,talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, iron ore, quartz, active carbon, coal, ect. |
|

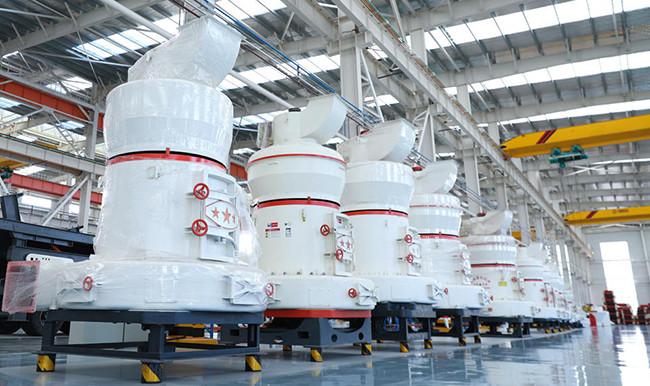

Raymond mill, also known as raymond grinding mill, raymond roller mill and raymond grinder, is suitable for grinding non-flammable and non-explosive materials.The finished powder size can be adjusted between 30 and 425 mesh(0.613mm-0.044mm). |
