ASTM A351 Stainless Steel Cast Fittings Threaded Hex Reducing Nipple Head

Price Negotiable

Price: PER BASE MATERIAL PRICE

MOQ: TO BE NEGOTIATED

Delivery Time: 60 DAYS FOR ONE CONTAINER

Brand: KASUGAI

Product Description

ASTM A351 MSS SP-114 CL150 Stainless Steel Cast Threaded Hex Head Reducing Nipple

Product Information

Product Name	ASTM A351 MSS SP-114 CL150 Stainless Steel Cast Threaded Hex Head Reducing Nipple
Thread Types	ASME B1.20.1(NPT)
Dimensions	MSS SP-114-2018
Size Range	1/4” to 4“
Pressure Class	Class 150 NPT
Materials	ASTM A351

Standards & Materials: ASTM A351 CF8 and CF8M

ASTM A351 CF8 and CF8M are austenitic stainless steel, exhibit good strength and ductility. CF8/CF8M are widely applied in pump and valve, marine, chemical processing, food processing industries, CF8 is also be applied in nuclear and defense industries.

ASTM A351 CF8/CF8M Chemical Composition (%)

Grade	C	Mn	Cr	Mo	Ni	Fe	Cu
CF8	0-0.08	0-1.5	18-21	0-0.5	9-11	Bal	0.00-0.00
CF8M	0-0.08	0-1.5	18-21	2-3	9-12	Bal	0.00-0.00

ASTM A351 CF8/CF8M Mechanical Properties

Grade

Tensile Strength

(ksi)

Yield Strength

(ksi)

Elongation

(%)

Hardness

(Brinell)

CF8

0.00-70

134-196

CF8M

0.00-70

146-212

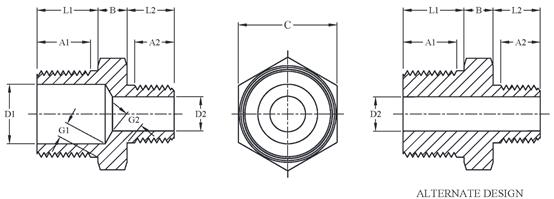

MSS SP-114 Dimensions of Class 150 Cast Thread Hex Head Reducing Nipples (inches)

NPS	Thread Length (min.)	Thread Length (min.)	Length of Hex. (min.)	Length of Hex. (min.)	Nominal Flat Width	Nominal Width Across Flats(b)	Bore Dia. (max.)	Bore Dia. (max.)	Metal Thickness (min.)	Metal Thickness (min.)
	A1	A2	L1	L2	B	C	D1	D2	G1	G2
¼ ×⅛	0.46	0.31	0.53	0.37	0.25	5/8	0.36	0.27	0.21	0.16
⅜ ×⅛	0.47	0.31	0.54	0.37	0.31	11/16^(a)	0.49	0.27	0.21	0.16
⅜ ×¼	0.47	0.46	0.54	0.53	0.31	11/16^(a)	0.49	0.36	0.21	0.21
½ ×⅛	0.61	0.31	0.69	0.37	0.31	7/8	0.62	0.27	0.25	0.16
½ ×¼	0.61	0.46	0.69	0.53	0.31	7/8	0.62	0.36	0.25	0.21
½ ×⅜	0.61	0.47	0.69	0.54	0.31	7/8	0.62	0.49	0.25	0.21
¾ ×⅛	0.62	0.31	0.70	0.37	0.38	1 1/16^(a)	0.82	0.27	0.26	0.16
¾ ×¼	0.62	0.46	0.70	0.53	0.38	1 1/16^(a)	0.82	0.36	0.26	0.21
¾ ×⅜	0.62	0.47	0.70	0.54	0.38	1 1/16^(a)	0.82	0.49	0.26	0.21
¾ ×½	0.62	0.61	0.70	0.69	0.38	1 1/16^(a)	0.82	0.62	0.26	0.25
1 ×⅛	0.77	0.31	0.86	0.37	0.38	1 3/8	1.05	0.27	0.30	0.16
1 ×¼	0.77	0.46	0.86	0.53	0.38	1 3/8	1.05	0.36	0.30	0.21
1 ×⅜	0.77	0.47	0.86	0.54	0.38	1 3/8	1.05	0.49	0.30	0.21
1 ×½	0.77	0.61	0.86	0.69	0.38	1 3/8	1.05	0.62	0.30	0.25
1 ×¾	0.77	0.62	0.86	0.70	0.38	1 3/8	1.05	0.82	0.30	0.26
1¼ ×¼	0.80	0.46	0.89	0.53	0.56	1 3/4	1.38	0.36	0.32	0.21
1¼ ×⅜	0.80	0.47	0.89	0.54	0.56	1 3/4	1.38	0.49	0.32	0.21
1¼ ×½	0.80	0.61	0.89	0.69	0.56	1 3/4	1.38	0.62	0.32	0.25
1¼ ×¾	0.80	0.62	0.89	0.70	0.56	1 3/4	1.38	0.82	0.32	0.26
1¼ ×1	0.80	0.77	0.89	0.86	0.56	1 3/4	1.38	1.05	0.32	0.30
1½ ×¼	0.81	0.46	0.90	0.53	0.62	2	1.61	0.36	0.33	0.21
1½ ×⅜	0.81	0.47	0.90	0.54	0.62	2	1.61	0.49	0.33	0.21
1½ ×½	0.81	0.61	0.90	0.69	0.62	2	1.61	0.62	0.33	0.25
1½ ×¾	0.81	0.62	0.90	0.70	0.62	2	1.61	0.82	0.33	0.26
1½ ×1	0.81	0.77	0.90	0.86	0.62	2	1.61	1.05	0.33	0.30
1½ ×1¼	0.81	0.80	0.90	0.89	0.62	2	1.61	1.38	0.33	0.32
2 ×¼	0.84	0.46	0.93	0.53	0.69	2 1/2	2.06	0.36	0.35	0.21
2 ×⅜	0.84	0.47	0.93	0.54	0.69	2 1/2	2.06	0.49	0.35	0.21
2 ×½	0.84	0.61	0.93	0.69	0.69	2 1/2	2.06	0.62	0.35	0.25
2 ×¾	0.84	0.62	0.93	0.70	0.69	2 1/2	2.06	0.82	0.35	0.26
2 ×1	0.84	0.77	0.93	0.86	0.69	2 1/2	2.06	1.05	0.35	0.30
2 ×1¼	0.84	0.80	0.93	0.89	0.69	2 1/2	2.06	1.38	0.35	0.32
2 ×1½	0.84	0.81	0.93	0.90	0.69	2 1/2	2.06	1.61	0.35	0.33
2½ ×½	1.27	0.61	1.35	0.69	0.75	3	2.47	0.62	0.46	0.25
2½ ×¾	1.27	0.62	1.35	0.70	0.75	3	2.47	0.82	0.46	0.26
2½ ×1	1.27	0.77	1.35	0.86	0.75	3	2.47	1.05	0.46	0.30
2½ ×1¼	1.27	0.80	1.35	0.89	0.75	3	2.47	1.38	0.46	0.32
2½ ×1½	1.27	0.81	1.35	0.90	0.75	3	2.47	1.61	0.46	0.33
2½ ×2	1.27	0.84	1.35	0.93	0.75	3	2.47	2.06	0.46	0.35
3 ×½	1.33	0.61	1.42	0.69	0.81	3 1/2	3.06	0.62	0.49	0.25
3 ×¾	1.33	0.62	1.42	0.70	0.81	3 1/2	3.06	0.82	0.49	0.26
3 ×1	1.33	0.77	1.42	0.86	0.81	3 1/2	3.06	1.05	0.49	0.30
3 ×1¼	1.33	0.80	1.42	0.89	0.81	3 1/2	3.06	1.38	0.49	0.32
3 ×1½	1.33	0.81	1.42	0.90	0.81	3 1/2	3.06	1.61	0.49	0.33
3 ×2	1.33	0.84	1.42	0.93	0.81	3 1/2	3.06	2.06	0.49	0.35
3 ×2½	1.33	1.27	1.42	1.35	0.81	3 1/2	3.06	2.47	0.49	0.46
4 ×1	1.43	0.77	1.52	0.86	1.00	4 5/8	4.02	1.05	0.53	0.30
4 ×1¼	1.43	0.80	1.52	0.89	1.00	4 5/8	4.02	1.38	0.53	0.32
4 ×1½	1.43	0.81	1.52	0.90	1.00	4 5/8	4.02	1.61	0.53	0.33
4 ×2	1.43	0.84	1.52	0.93	1.00	4 5/8	4.02	2.06	0.53	0.35
4 ×2½	1.43	1.27	1.52	1.35	1.00	4 5/8	4.02	2.47	0.53	0.46
4 ×3	1.43	1.33	1.52	1.42	1.00	4 5/8	4.02	3.06	0.53	0.49
