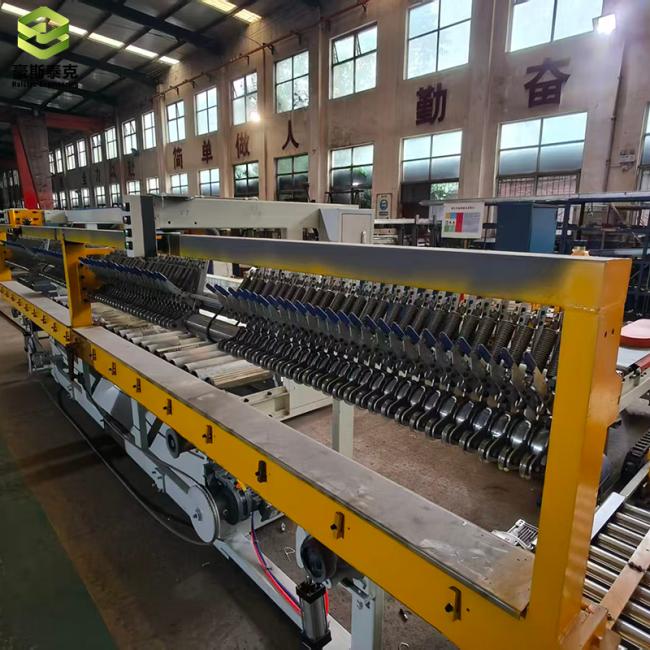

Automatic High-Capacity Brick Cutting Machine: Precise Cutting, Easy Operation And Eco-Friendly

Technical Parameters:

Product Description:

A Brick Cutting Machine is a key piece of equipment on an automated brick production line, installed after the Vacuum Extruder. Its core function is to precisely cut the continuously extruded clay column, which has a specific cross-sectional shape, into individual green bricks or tiles of a preset, uniform length.

Core Value:

1. Enables Automation: Replaces manual cutting, significantly improving production efficiency.

2. Ensures Uniform Specifications: Guarantees consistent dimensions for every green brick, which is essential for producing high-quality fired brick products in subsequent stages.

3. Improves Yield Rate: Precise cutting reduces defects like burrs and broken edges, lowering the rejection rate.

Working Principle:

The brick cutting machine primarily operates on the principle of "cutting the clay column with wires during synchronized movement":

1. Clay Column Extrusion: The vacuum extruder compacts and forces the mixed clay mixture into a dense column, continuously extruding it through the die.

2. Synchronized Tracking: When the clay column reaches the predetermined length, the cutting mechanism (a frame equipped with wires) of the cutting machine activates. The cutting frame accelerates to match the forward speed of the clay column, achieving "synchronized movement."

3. Precise Cutting: While moving synchronously, the wire(s) on the cutting frame swiftly moves laterally across the clay column, cutting it. Because of the synchronized movement, the cut end face is smooth and undistorted.

4. Return and Wait: After the cut is complete, the cutting frame quickly lifts and returns to its initial position, awaiting the next cutting signal.

Customization:

Product Customization Services for the Automatic Brick Plant:

Brand Name: Halstec

Model Number: SZQPH36

Place of Origin: CHINA

Certification: ISO9001

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Nude in the container

Delivery Time: 30-50 days after advanced payment

Payment Terms: T/T, L/C or negotiation

Supply Ability: 2 sets per month

Use For: Brick Factory

Feature: Easy Operation

Name: Brick Cutting Machine

Environmental: Friendly

Capacity: 36000 Bricks/hr

Support and Services:

The Product Technical Support and Services for the Automatic Brick Plant include:

- Efficient troubleshooting assistance for any operational issues

- Comprehensive training programs for operators and maintenance staff

- On-site installation and commissioning services

- Timely maintenance and repair services to minimize downtime
