Customized OADM 1x2S Fiber Optical Switch For System Monitoring
Epoxy-free 1x2S Fiber Optical Switch with High Stability & Low Insertion Loss

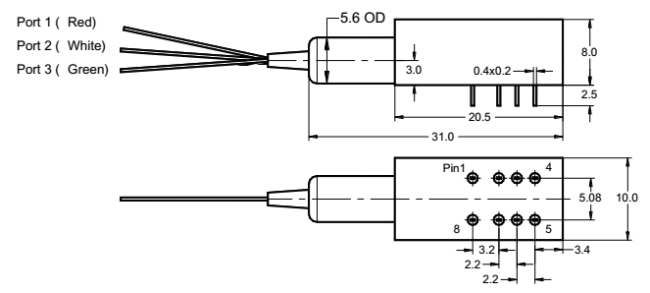

Dimension
Specifications
| Parameters | Unit | GP-OSW1×2S | |
| Wavelength Range | nm | 850±40 / 1300±40 | 1260 ~ 1650 |
| Test Wavelength | nm | 850 / 1300 | 1310 / 1550 |
| Insertion Loss 1, 2 | dB | Typ: 0.6 Max: 1.0 | Typ: 0.6 Max: 1.0 |
| Return Loss 1, 2 | dB | MM ≥ 30 SM ≥ 50 | |
| Crosstalk 1 | dB | MM ≥ 35 SM ≥ 55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Operating Voltage | V | 3.0 or 5.0 | |
| Durability | Cycles | ≥ 10 Million | |
| Switching Time | ms | Typ: 3 Max: 8 | |
| Optical Power | mW | ≤500 | |
| Operating Temperature | ℃ | -10 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Relative Humidity | % | 5 ~ 95 | |
| Weight | g | 14 | |
| Dimension | mm | 20.5L×10.0W×8.2H | |
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. |
|||
Pin Configurations
| Type | State | Optical Route | Status Sensor | |||||
| 1×2S | Pin 1 | Pin 8 | Pin 2-3 | Pin 3-4 | Pin 5-6 | Pin 6-7 | ||
| Latching | A | P1-P3 | GND | V+ Pulse | Close | Open | Open | Close |
| B | P1-P2 | V+ Pulse | GND | Open | Close | Close | Open | |
| Non-latching | A | P1-P3 | -- | -- | Close | Open | Open | Close |
| B | P1-P2 | V+ | -- | Open | Close | Close | Open | |
Ordering Information: 7201-1×2S-A-B-C-D-E-F-G
Example:7201-1×2S-SM-FS-3-L-90-12-FA
| A | B | C | D | E | F | G |
| Fiber Type | Test Wavelength | Operating Voltage | Switch Type | Tube Type |
Fiber Length
|
Connector |
|
SM: SM, 9/125 M5:MM, 50/125 M6:MM, 62.5/125 X: Others |
85: 850±40nm O: O band(1260~1360nm) C: C band(1530~1565nm) L: L band(1565~1625nm) U: U band(1625~1675nm) FS: 1260~1650nm |
3: 3V 5: 5V
|
L: Latching N: Non-latching |
25:250um(Bare fiber) 90:900um X: Others |
05: 0.5m±5m 10: 1.0m±5m 12: 1.2m±5m 15: 1.5m±5m X: Others |
OO: None LP: LC/PC LU: LC/UPC LA: LC/APC FP: FC/PC FU: FC/UPC FA: FC/APC SP: SC/PC SU: SC/UPC SA: SC/APC STP: ST/PC STA: ST/APC X: Others |
