8CH DWDM Multiplexer Network Device For Multiplexing Dual Fiber 1U Rack
Price:
Negotiable
MOQ:
1pc
Delivery Time:
3-5days
Brand:
Iseelink
Product Description
16ch DWDM MUX/DEMUX Plug-and-Play for Fiber Capacity Increase

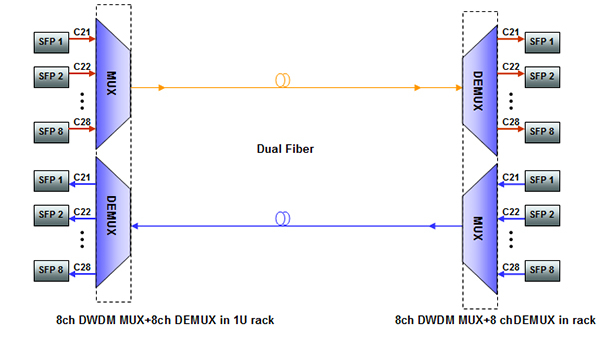

The 8CH DWDM MUX/DEMUX is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. It may be used as a standalone tabletop device or mounted in a 1-unit space of a 19” data rack. It can achieve 8ch duplex data multiplex and de-multiplex.
The complete passive solution requires no power cabling and no configuration; it is a true plug-and-play solution.
Product Features
● 8 Channel 100 GHz DWDM combined Multiplexer and Demultiplexer (MUX and DEMUX)
● Standalone compact form factor-1U, Installation friendly
● Plug’n play: requires no configuration
● Green product: completely passive, needs no power and no cooling
● Low Low insertion loss, insertion loss <=3dB,
● High channel isolation:adjacent isolation >=25dB; non-adjacent isolation >=40dB
● Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from HTFuture and other third parties
● High reliability, MTBF of 100 years
● Designed for Telcordia / Bellcore GR-120
Product Application
- DWDM transmission
-
Metro and long-haul networks
-
Point-to-point DWDM fiber optimization
-
Linear add/drop DWDM fiber optimization
-
DWDM peer-to-peer case
-
DWDM chain network case
-
DWDM+OLP optical line protection Case
-
DWDM Ring network case
-
DWDM single fiber bidirectional networking case
-
DWDM ultra long-distance solution
Product Specification
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||||
| MUX | DEMUX | MUX | DEMUX | MUX | DEMUX | ||||
| Channel Wavelength (nm) | ITU 100GHz Grid | ||||||||
| Center wavelength Accuracy(nm) | ±0.1 | ||||||||
| Channel Spacing (nm) | 0.8nm(100GHz) | ||||||||
| Channel Passband(@-0.5dB bandwidth (nm) | >0.25 | ||||||||
| Insertion Loss (dB) | <=1.8 | <=3.0 | <=4 | ||||||
| Channel Uniformity (dB) | <=0.6 | <=1.0 | <=1.5 | ||||||
| Channel Ripple (dB) | 0.3 | ||||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||
| Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||||
| Polarization Dependent Loss (dB) | <0.1 | <0.1 | <0.15 | ||||||
| Polarization Mode Dispersion | <0.1 | ||||||||
| Directivity (dB) | >50 | ||||||||
| Return Loss (dB) | >45 | ||||||||
| Maximum Power Handling (mW) | 300 | ||||||||
