OEM MEMS Multimode Fiber Optic Switch 850 1x16/4/8 for OADM OXC protection
MEMS OSW1×16 OADM OXC optical switch
Introduction of OSW 1*16 optical fiber switch
Optical Switch (hereinafter referred to as MEMS optical switch) is a modular product with multi-channel optical path switching function. MEMS optical switch products are optical switches made of electrostatically driven micro-mirror solutions. They have the characteristics of small size, fast response speed and stable performance, and can be widely used in various optical communication and testing systems.
Applications of optical fiber switch
·R&D in Laboratory
·System Monitoring
·OADM
·OXC
Specifications
| Parameters | Unit | MEMS OSW1×16 | ||
| Wavelength Range | nm | MM 850±20 | MM 1400~1700nm | SM 1310±20/1550±20/1625±20 |
| Test Wavelength | nm | MM 850 | MM 1550 | SM 1310/1550 |
| Insertion Loss 1, 2 | dB | 0.8(TYP) 1.0(MAX) | 0.8(TYP) 1.0(MAX) | |
| Return Loss 1, 2 | dB | MM ≥ 25 | SM ≥ 40 | |
| Crosstalk 1 | dB | MM ≥ 30 | SM ≥ 45 | |
| PDL | dB | ≤0.15 | ||
| WDL | dB | ≤0.3 | ||
| Repeatability | dB | ≤0.1 | ||
| Durability | Cycles | ≥109 | ||
| Switch Mode | Non-latching | |||
| Optical Power | mW | ≤500 | ||
| Power Supply | V | 5±0.2 | ||
| Operating Temperature | ℃ | -5 ~ +70 | ||
| Storage Temperature | ℃ | -40 ~ +85 | ||
| Relative Humidity | % | 5 ~ 95 | ||
| Dimension | mm | TYPE B: (L)65×(W)24.7×(H)11 ±0.2 | ||
|
Note: 1 Within operating temperature and SOP. 2 Excluding connectors. |
||||
Optical Route
Pin Assignment
TTL/UART
| Pin | Name | Description | I/O | specification | Unit |
| 1 | NC | Not Connected | |||
| 2 | VCC | Power Supply | IN | 5±0.2 | VDC |
| 3 | /STROBE | Strobe signal, Falling Edge Active | IN | LVTTL | |
| 4 | GND | Ground | IN | ||
| 5 | D0 | Data0 Input | IN | LVTTL | |
| 6 | D1 | Data1 Input | IN | LVTTL | |
| 7 | D2 | Data2 Input | IN | LVTTL | |
| 8 | NC | Not Connected | |||
| 9 | TXD | UART transmit | OUT | LVTTL | |
| 10 | RXD | UART receive | IN | LVTTL | |
| 11 | GND | Ground | IN | ||
| 12 | NC | Not Connected | |||
| 13 | D3 | Data3 Input | IN | LVTTL | |
| 14 | /RESET | Hardware Reset, Logic Low Active | IN | LVTTL |

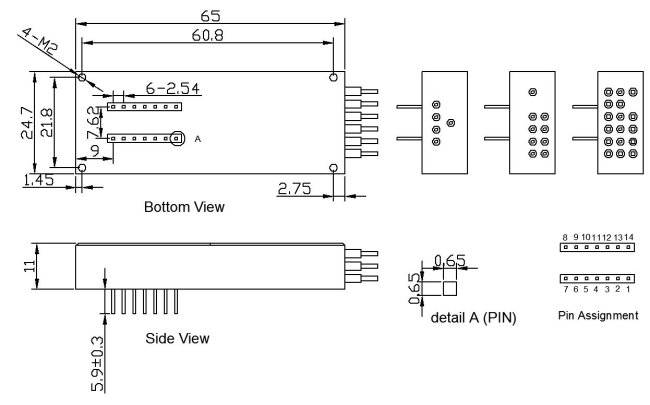

Dimension
Package Type B Tube Type:900um, N≤16
Packing box of optical switch
- Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
- The standard packing usually contains a main device, a warranty card and a user manual.
