19 Port 48V Poe Switch Rackmount 10/100M IEEE 802.3u
19Port Gigabit Uplink 10/100M PoE Fiber Switch
Introduction
Gigabit Uplink 16-port PoE switch, using high-quality high-speed network IC and the most stable PoE chip, The PoE port meets the 802.3af or 802.3at standard. This series of PoE switches can provide seamless connection for 10/100M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.
Features
- 16*10/100M POE ports + 2* 1000M Ethernet Uplink ports +1*1000M SFP Port
- Comply with IEEE 802.3, IEEE 802.3u,IEEE802.3ab,IEEE802.3z standards
- Ethernet port 10/100/1000M rate auto adaptive
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support Port Auto-flip (Auto MDI/MDIX)
- Panel indicators to monitor working status and help fault analysis
- One-key smart switch, supports VLAN,Default , Extend
Specifications
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | 16 *10/100M PoE Port |
| Performance | |
| Switching Capacity | 9.2Gbps |
| Throughput | 6.844Mpps |
| Packet Buffer | 1.5Mbit |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network protocol | IEEE802.3 (10Base-T) |
PoE Protocol | IEEE802.3af (15.4W) |
Network Medium | 10Base-T : Cat3,4,5 or above UTP(≤100m) |
| Optical Media | Multimode fiber : 50/125, 62.5/125, 100/140μm |
| Protection | |
| Security Certificate | CE,FCC,RoHS |
| Environment | |
| Working Environment | Working Temperature:-10~50°C |
| Indication | |
| PWR(power supply) | Lighting:Powered |
| Mode(DIP) | Lighting:VLAN |
| 1-19 Gree(Link&Data) | Lighting:Connecting |
| DIP Switch | VLAN:Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port. |
| Mechanical | |
| Structure Size | Product Dimension : 320*207*45mm |
| Packing Info | Carton MEAS:445*310*390mm |
| Power Voltage | Input Voltage :AC 100-240 V |
| power | Product power: maximum 10W / maximum 10W |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, |

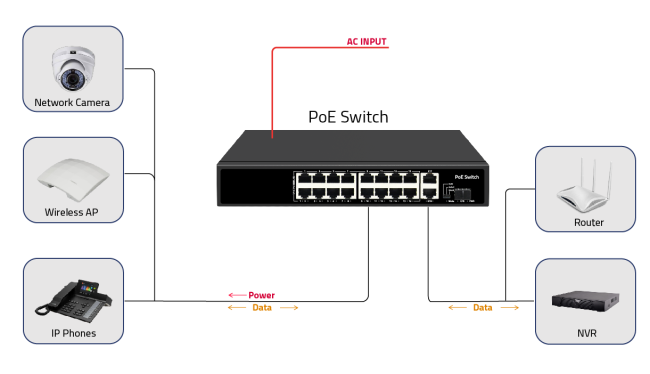

Application
FAQ:
Q1. Can I have a sample order for Industrial ethernet switch?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for optical fiber switch order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
