PA EDFA Preamplifier Optical Amplifier Board Card 1550nm
PA Preamplifier Card Erbium Doped Fiber Amplifier 1550nm with OEM/ODM Service
EDFA series optical amplifiers are erbium-doped fiber amplifier products launched by our company, which can provide multi-functional, low-noise, high-gain erbium-doped fiber amplifier solutions, especially suitable for DWDM dense wavelength division multiplexing systems, and solve the problem of insufficient long-distance transmission power problem.
EDFA amplifier: it can be divided into power amplifier, line amplifier, and pre-amplifier from the application position.
PA preamplifier: It has the characteristics of low input power, low input power, high gain, low output, etc. It is mainly used for DWDM system connection to increase the received optical power of the DWDM system.

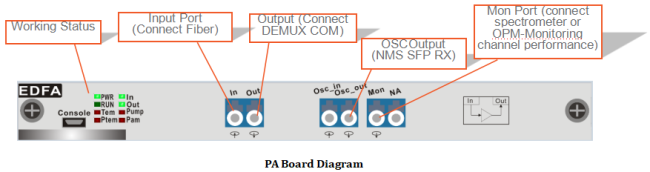

Product Features
- Personalized customization:
- Support a variety of personalized customization with saturated output power of 13~24dBm
- Support a variety of gain specifications 8~35dB personalized customization
-
Ø Support personalized customization of BA power amplification, LA line amplification, and PA pre-amplification
- Support red and blue single fiber bidirectional EDFA (used in single fiber transmission system)
- Support with intermediate gain
- DCM can be inserted in the middle, which can offset the insertion loss introduced by DCM;
- Support OADM insertion, which can offset the insertion loss introduced by OADM
- Increase the signal receiving optical power
- Improve the OSNR
Product Application
- C-band optical signal overall amplification
- Covering the wavelength range of 1528 ~ 1565nm
- Support systems to achieve different cross-section radio repeater transmission
Product Specification
| Parameter | Min | Typ | Max | Unit | ||
| Operating Wavelength | 1528 | / | 1565 | nm | ||
| Output Power | / | / | 22 | dBm | ||
| Gain | 8 | / | 33 | dB | ||
| Input Power | BA | -10 | / | Max.Output -Gain | dBm | |
| PA/LA | (Max.input-29) | Max.Output -Gain | ||||
| Noise Figure | / | 5 | / | dB | ||
| Gain Flatness | / | 1 | / | dB | ||
| Input threshold | -34 | / | Can be adjusted | dBm | ||
| Polarization dependence loss | / | / | 0.3 | dB | ||
| Polarization dependence Gain | / | / | 0.4 | dB | ||
| Polarization mode dispersion | / | / | 0.5 | ps | ||
| Pump power leakage | / | / | -29 | dBm | ||
| Return Loss | 45 | / | / | dB | ||
| Size | EDFA Module | 191 (W) x 253 (D) x 20 (H) | mm | |||
| 4-slot chassis | 482.5(W) x 350(D) x 44.5(H) | mm | ||||
| 8-slot chassis | 482.5(W) x 350(D) x 89(H) | mm | ||||
| 20-slot chassis | 482.5(W) x 350(D) x 222.5(H) | mm | ||||
| Environment | Operating Temperature | -10℃ ~ 60℃ | ℃ | |||
| Storage Temperature | -40℃ ~ 80℃ | ℃ | ||||
| Relative humidity | 5% ~ 95% Non-condensing | / | ||||
| Power Consumption | ＜=15 | W | ||||
