19" 2U Chassis with DWDM, CWDM, OADM, OTU, OEO, EDFA, SOA, OSW, OPD, LSU, VOA Cards Inside

OSP2800 fiber monitoring system adopts the standard 19-inch chassis design, with the size of 1U, 2U,4U, etc. The redundant power and pluggable design support dual AC, dual DC, and AC&DC power supply modes. This equipment provides 20 function card slots maximum, two kinds of NMU and 50W,100W, and 200W power cards, and supports DWDM, CWDM, OADM, OTU, OEO, EDFA, SOA, OSW, OPD, LSU, VOA, and TMUX function card, thus it is widely used in optical transmission, optical protection, cable monitoring, and data safety field.

The fiber optic monitoring system is combined with OTDR, optical switch, and upper-level network management software, to form a systematic and intelligent system integrating functions of testing, analysis, alarm, positioning, information management, and worksheet.

Product Features

• Modularized design of the function card, flexible networking of CWDM, DWDM transmission, protection, and monitoring.

• Configuration,performance, alarm and safety management, etc.

• Pluggable 1+1 redundant power provides a stable power supply for the equipment.

• 2U equipment provides 8 function card slots maximum, to enrich the function of the network.

• Web-based GUI user interface management, easy for engineering installation.

• Support SNMP, WEB, TELNET, and SSH network protocol remote management.

Product Specification

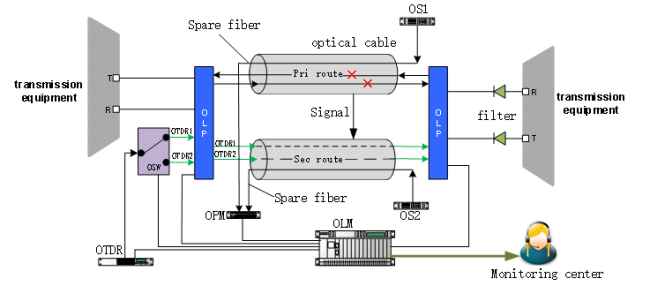

Schematic Diagram
