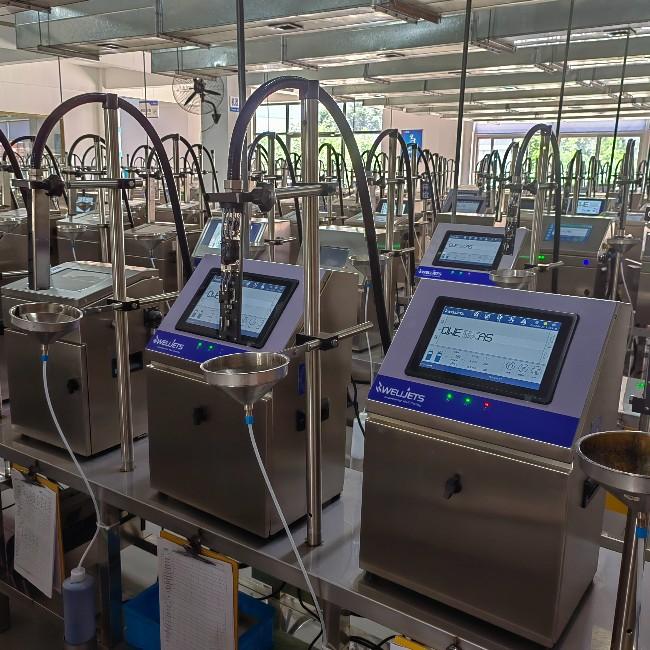

Reliable And Cost-Effective Continuous Inkjet Printer

The Industrial high reliable performance inkjet printerr with advance features

Unique high-definition large screen, 10.1 inches, resolution up to 1280*800.
The interface editing method is more convenient, and it can be easily realized by dragging, copying and pasting.
Support all windows fonts, support vector fonts, scalable fonts.
The core board is more efficient, faster processing and more powerful.
Increase the dynamic delivery function of the dot matrix font to meet all printing needs of customers.

Variable Info Printing:

Barcode/2D code, image/logo, counter, variable database etc.

Intelligent Ink Management:

Printhead heating system, automatically recommend the best printing parameter and measuring system for ink consumption.

Printing Height:

1.5mm-15mm,variable based on message & throw distance

Icon Guide Operation Interface

Intuitive Icon Guide Operation Interface, friendly printing experience.

Printing Contents:

Chinese,English,Arabic, Number, Date, Batch, Shift, Image/logo, Exp, MFD, Counter, etc.

Icon Guide Operation Interface:

Simplified one-touch on/off buttons up the jet ready to start printing, and when pressed to shut down, automatically flushes the head and powers off to ensure the printers is always available. Intuitive Icon Guide Operation Interface, using friendly printing experience.

Port & Communication:

Build in Ethernet port enable printer to be networked. USB, RS232, etc.

Aviation Connector:

Reliable Aviation Connectors, More stable

Control Unit.

Control Panel:

Qt.10.1 Inch LVDS High Resolution, bigTouchScreen,

Simple operation experience on new friendly interface

Interface

Hardware

4-Core Processor, Main frequency of CPU:1.4GH withStandard 1G RAM, 8G EMMC.

Cabinet

Stainless Steel(304), designed to IP65.

Software Spec.

Multi-language menu

Multi-languageMenu, English, Arabic, Russian, Japanese and Persian, etc. With QT system very easy to add any language.

Printing Contents

Dynamic printing of 140 types of Barcode, 2D code,Chinese , English,Number.Date, time, Logo, Barcode, batch number, class type, serial number, etc

Software Update

Simple remote update of software with latest function.

Print Lines

Up to 4 lines (7*5dot)Up to 5 lines (5*5dot)

Fonts Size

5X5, 5X7, 7X9, 10x12, 12X16, 18X24, 24X32

Printing Speed

Up to 285m/min (5*5 fontsingle line)

Printing Throw Distance

Maximum 30mm from printhead to surface.

Printing Height

1.8mm—15mm

Ink System.

Intelligent Ink Managing

Automatically measuring system for ink consumption, clear liquid level and printing parameter.

Ink bleed control:

Automatic on start up

Hydraulic System

Intelligent Hydraulic System guarantee well-sealed ink and makeup

Protocol

MODBUS Standard Industrial Protocol

Standard Connection.

Product detector

Npn/pnp 12V 100mA for photocell or proximity detector

Shaft encoder

Npn/pnp eccoder Shaft encoder

Others Port

USB, Ethernet, I/O interface etc

Working Environment.

Temperature range:

Ambient Temp:-5°C~45°C
