Seamless Practical Curved Video Wall , Multipurpose Flexible LED Signage
LED flexible special-shaped P2P2.5 P3P4 full-color small spacing curved screen seamless splicing arc screen
Flexible Module Series
Wanmei Shijie flexible screen is by soft LED modules. Compared with traditional screens, flexible screens have more advantages for creative solutions.
It can achieve creative shape, like Cylinder, Concave, Convex, Wave Shape, Mobius Strip etc.
Various pixel pitch optional, P1.5 , P1.8, P2.5, P4 to meet different requirements.
Applications are: Museums, Shopping Mall, Advertising, Exhibitions, Hotel, Theme Park and so on.
| item | value |
| Application | Indoor |
| Color | full color |
| Panel Size | Customized |
| Pixel Pitch | 2mm |
| Place of Origin | China |
| Pixel composition | 1R1G1B |
| LED Type | SMD1515 |
| Pixel Density(dots/m2) | 62,500 |
| Scan mode | 1/20 |
| Brightness(cd/m2) | ≥1,200 |
| Avg Power Consumption(W/m2) | 250-300 |
| Max Power Consumption(W/m2) | ≤550 |
| Viewing distance (m) | 2 |
| Weight (kg) | Depends on Cylindrical size |
| Refresh Rate(Hz) | 960~5000 |
| size(m) | Customizable |
| Life Span | ≥1,000,000 hours |
| Mtbf | ≥10,000 hours |
| Discrete Out of Control Point(%) | <0.0001% |
Product Features:

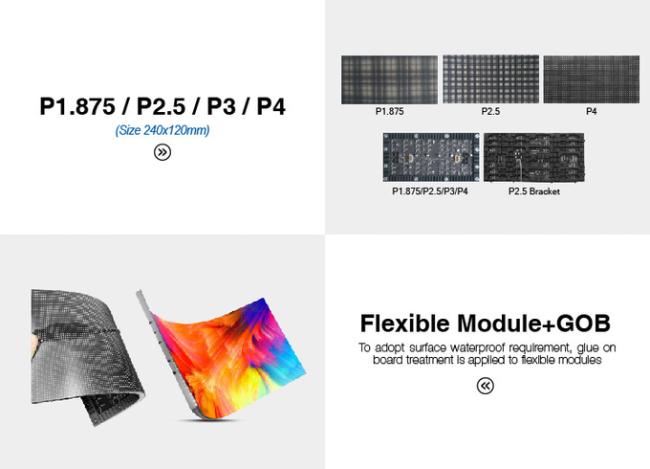

1. Flexible Module+GOB
To adopt surface waterproof requirement, glue on board treatment is applied to flexible modules.
2. Soft & Curlable
Equipped with flexible & high temperature resistant FPC PCB, bending resistant silicone bracket, embedded magnet pieces, freely to serve the curve or twisted Led Display creations.
3. Slim & Graceful
Regardless of flexible module model, every piece has the thickness ≤4 mm & weight ≤ 260g, splicing error ± 0.1 mm, it can be arbitrarily shaped according to project demanding, seamless spliced and suitable for installation methods such as hoisting, seating, embedding or wall-mounting...
4. Simple & Moldable
Every flexible module has several magnetic columns with quick butt-joint signal and electricity wires,firm and reliable, easily to be assembled or dismantled, simply the best to moldify various columns,waves, belts or curve screens,etc.
