GOYEN Thread Ports Pneumatic Pulse Valve CA25DD
Goyen Type Dresser Nut Valve CA25DD
CA25DD Pulse Vlave is a kind type of Dresser Nut Valve, simple to say is connected by dresser nut. The valve CA25DD is with inlet and outlet as 90° angle, especially designed for dust collector cleaning system.
And valve body is made of die-cast aluminium, the coil is made of high quality copper, the ferrule is made of SS304, the plunger and iron top assembly are made of magnetic 430FR SS, and the diaphragm is made of
NBR or Viton, as options of your request.
We produce series pulse jet valves: CA20T , CA25T , CA35T , CA45T , CA50T , CA62T , CA76T , CA25DD , CA45DD , CA25FS, CA45FS, RCA20T , RCA25T , RCA35T , RCA45T , RCA50T , RCA62T , RCA76T , RCA25DD , RCA45DD , RCA25FS, RCA45FS

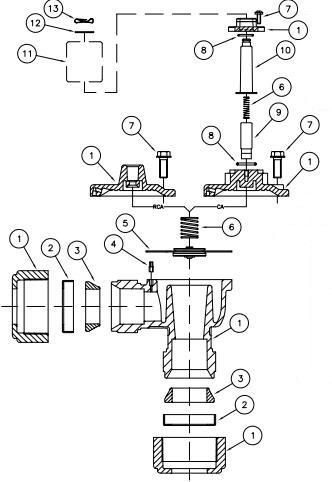

Mechanical Details of Pulse Valve CA25DD:
| No. | Description | Standard Material | Port Option |
| 1 | BODY, COVER, NUT | ALUM DIE CAST CA313 | 1" PIPE |
| 2 | SEAL RETAINER | M.S GALVABOND | N/A |
| 3 | SEAL | NITRILE | N/A |
| 4 | BLEED PIN | SPRUNG STEEL | N/A |
| 5 | DIAPHRAGM ASS'Y | BUNA N/NYLON | N/A |
| 6 | SPRING | 304 STAINLESS STEEL | N/A |
| 7 | SCREW | 304 STAINLESS STEEL | N/A |
| 8 | O RING | BUNA N/NITRILE | N/A |
| 9 | PLUNGER ASS'Y | 430 FR ST/STEEL | N/A |
| 10 | FERRULE/IRON TOP ASS'Y | 305 STAINLESS STEEL | N/A |
| 11 | COILS | 130 RATED NYLON ENCAPSULATION |
QD -1/2 NPSS -M20X1.5 |
| 12 | WASHER | PRESSED ALUMINIUM | N/A |
| 13 | CLIP | MECH PLATED STEEL | N/A |

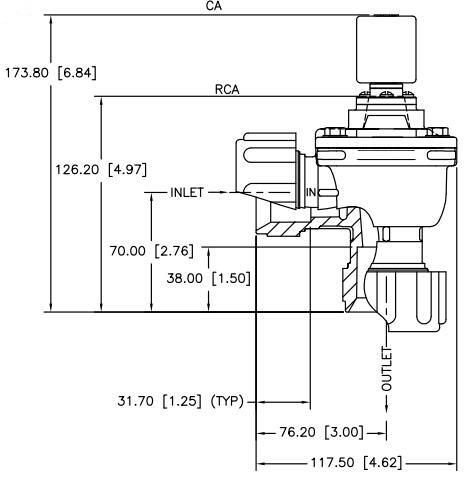

Pulse Vlave CA25DD Overall Dimensions:
Pulse Valve CA25DD Electrical Details:
| COIL VOLTAGE | 200/240 VAC, 100/120 VAC, 24 VAC, 24 VDC, 12 VDC |
| COIL CONNECTION | QR-DIN CONNECTION QD CONDUIT ENTRY |
Technical Data of Pulse Valve CA25DD:
| Working pressure | 0.3~0.8Mpa |
| Relatively humidity | <85% |
| Working medium | Clear Air |
| Voltage | AC110V/AC220V/DC24V |
| Ambient Temperature | for -5~50°C |
| Diaphragm material | NBR(Nitrile) or VITON (NBR for -5~80°C; VITON for -5~230°C) |
| Diaphragm life cycles | can work more than 1 million cycles |
| Spring material | stainless steel |
| Body material | die-cast aluminium |
Welcome your any enquiry, we will response at once.
