Microwave Microstrip Wilkinson Power Divider RF 2000MHz -18000MHz
Price:
negotiation
MOQ:
5pcs
Delivery Time:
depends on your quantity
Brand:
Vinncom
Product Description

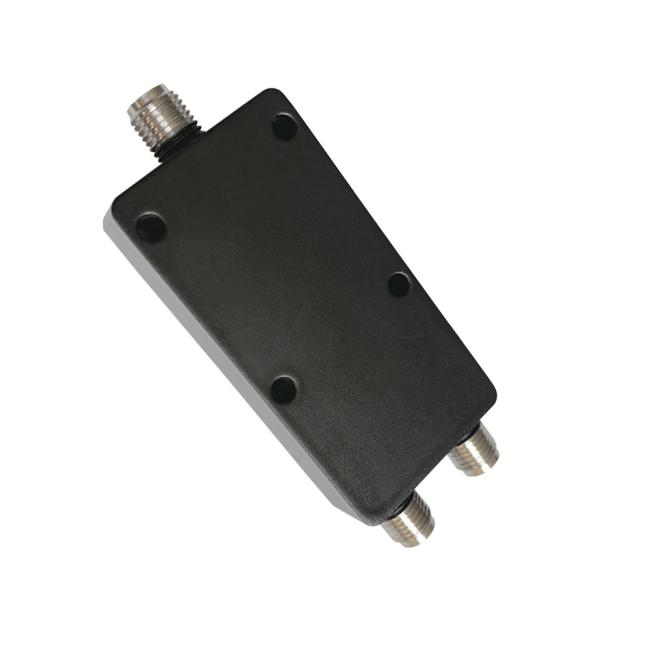

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider/Combiner
- Wide band frequency
- Good VSWR
- High isolation
| Part Number | VN-PD-35180-OSF2 |
| Operating Frequency ( MHz ) | 3500-18000 |
| Insertion Loss | 1dB max |
| Input VSWR | 1.4 max. |
| Output VSWR | 1.3 max |
| Isolation | 18dB min. |
| Amplitude Balance | 0.3dB max. |
| Phase Balance | ±4° |
| Impedance ( Ohm ) | 50 |
| Average Power | 20W max./1W max. as combiner |

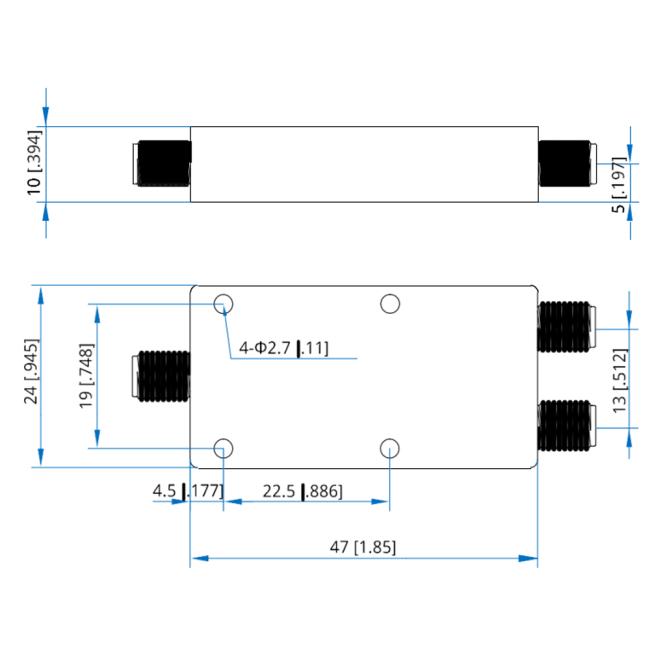

| Size | 47*24*10mm |
| Weight | 32g |
| Connectors | SMA Female |
| Operation Temperature | -45~+85℃ |

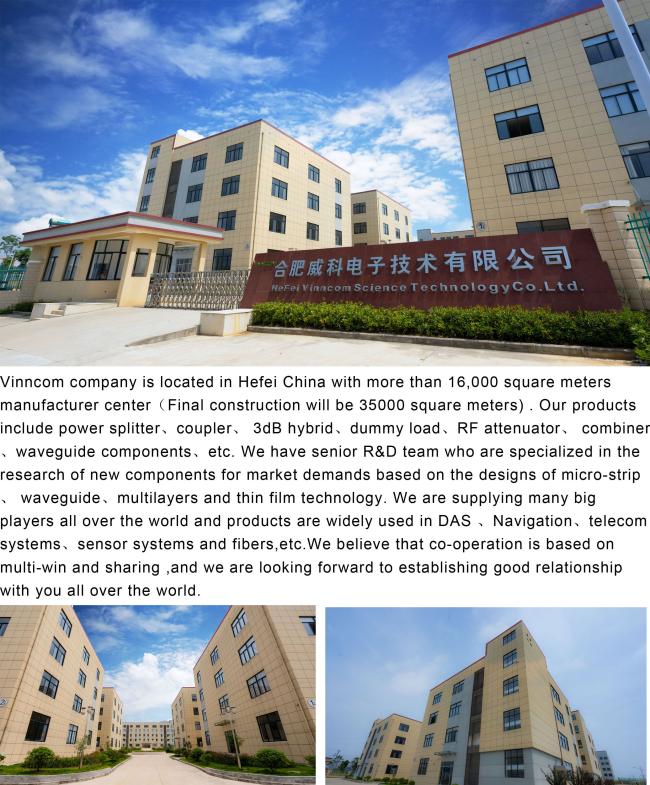

Our Company

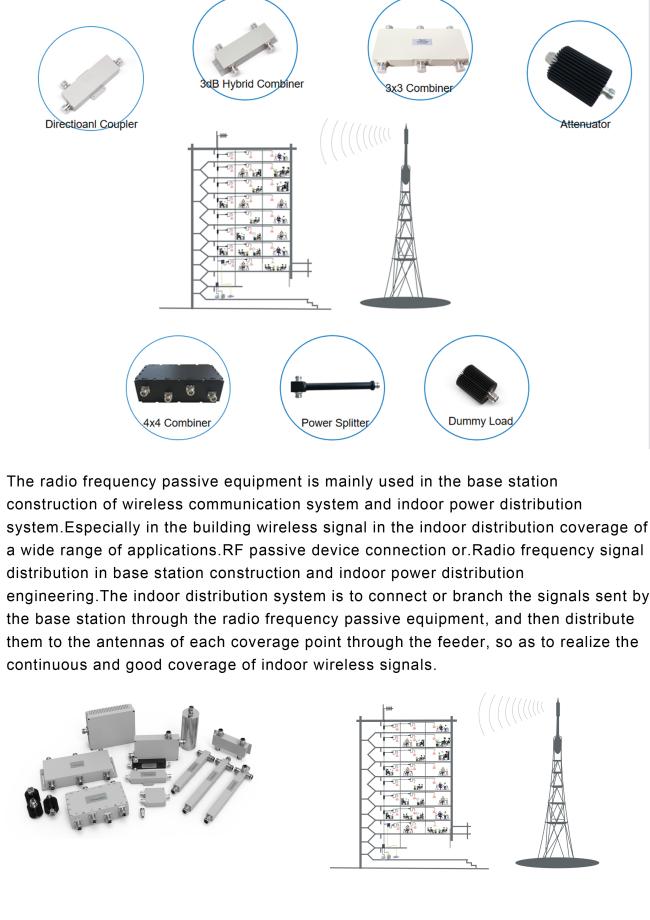

Product Application
Package & Delivery
FAQ
Q:Could you supply the sample for me to test first?
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.
Q.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS
Q.Can you do OEM or ODM?
A: Yes, OEM and ODM are welcomed.
Q.How does your factory do regarding quality control?
A1:In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.
Q. What's your payment way?
1).We accept West Union/T T.
2).Payment must be made within 3 days of order.The terms of payment are negotiable.
Q. How about the shipping?
A: For small orders, we will send the goods by international Express like FedEx, DHL, TNT , UPS or EMS, usually it takes 5-7 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on
different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.
Q: What is the MOQ of your products?
A: It depends on different products.
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.
Q.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS
Q.Can you do OEM or ODM?
A: Yes, OEM and ODM are welcomed.
Q.How does your factory do regarding quality control?
A1:In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.
Q. What's your payment way?
1).We accept West Union/T T.
2).Payment must be made within 3 days of order.The terms of payment are negotiable.
Q. How about the shipping?
A: For small orders, we will send the goods by international Express like FedEx, DHL, TNT , UPS or EMS, usually it takes 5-7 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on
different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.
Q: What is the MOQ of your products?
A: It depends on different products.
Welcome to inquiry
