DC-6GHz 100W 4.3-10 Female Dummy Load / Termination Load
Price:
negotiation
MOQ:
5pcs
Delivery Time:
Negotiable
Brand:
Vinncom
Product Description
DC-6GHz 4.3-10 Female 100W Dummy Load /Termination Load
- Good VSWR
- Wide band
- ROHS Compliance
RF Dummy Load model number VN-LD-6G-100W-OPm-S.RF Dummy load is a device used to
stop some port as a RF power load when testing other RF products or stop the RF power radiation
when some port is not used at present .RF Dummy load also will absorb some power and getting
heating when RFA system works, so when use dummy load to stop some port in the RF system,
pay attention to the power handling ,otherwise may be over-heated.
| Part Number | VN-LD-6G-100W-OPm-S |
| Operating Frequency ( MHz ) | DC-6000 |
| Impedance ( Ohm ) | 50 |
| VSWR | ≤1.25 |
| Application | Indoor |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | 4.3-10 Male |
| Handling Power (Watt, max) | 100 |

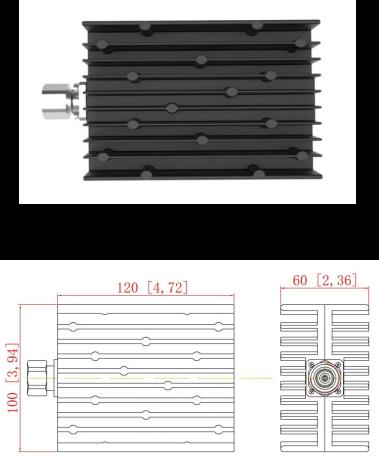

| Dimension (mm)(L×W×H, excl connector) | 120X100X60 |
| Packing Dimensions(mm)(L×W×H) | 260X135X120 |
| Packing Carton Size(mm)(L×W×H) | 540X500X155 |
| ROHS Compliance | Yes |
