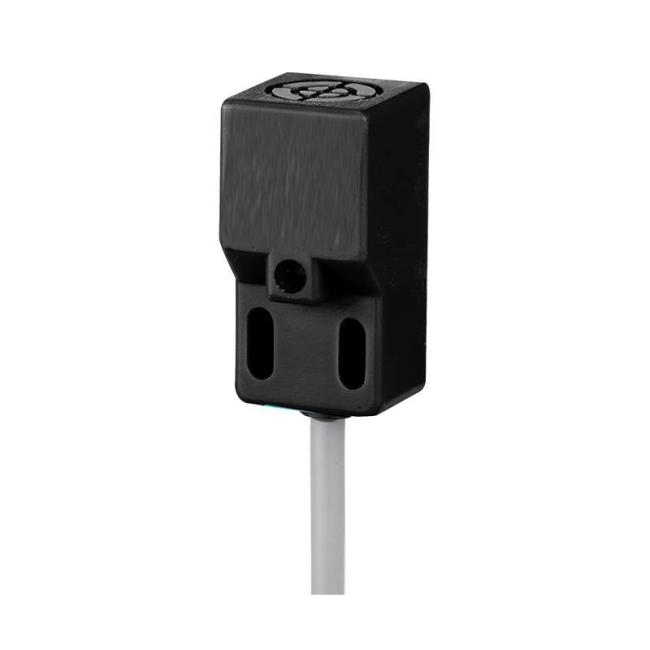

SR-SL-QL17 M12 Dc Inductive Proximity Switch Sensor 500Hz Frequency
Price:
Large quantity price negotiable
MOQ:
one
Delivery Time:
1-2 work days
Brand:
SUPERISYS
Product Description
SR-SL-QL17,Dc Inductive Approach Light
Product characteristics
M12 Interface Series IOLINK slave distributed module is a distributed IO-Link connection using M12 standard interface.
Contains 8 M12 standard analog IO interfaces,
With IP67 protection grade, simple wiring, open connection,
Easy to expand, easier equipment replacement and other features,
The main station can store data and have diagnostic instructions for easy maintenance and debugging.
| model | SR-SL-QL17 |
| external diameter | QL17 |
| ● flush ○ unshielded |
◑ |
| Sensing distance sn: mm | 5mm |
| sheating material | ABS |
| ●tape light ○No indicator | ● |
| picture |  |
| working voltage | 10-30VDC |
| Allowable ripple voltage | ＜10% |
| no-load current | ＜10mA |
| Maximum load current | 200mA |
| leak current | ＜0.01mA |
| pressure drop | ＜2.5V |
| switching frequency | 500Hz |
| response time | 0.5ms/0.5ms |
| Switching hysteresis | ＜15%(Sr) |
| repeated accuracy | ＜1.0%(Sr) |
| level of protection | IP67 |
| operating temperature | -25℃~+70℃ |
| temperature drift | ＜10%(Sr) |
| short-circuit protection | YES |
| overcurrent | 220mA |
| Inductive surface material | POM |

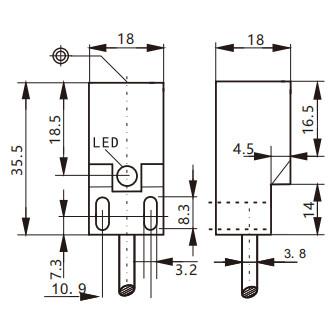

| Size drawing (unit: mm) |  |
| Cable 2m | 3.8φ3x0.15 |
| Weight (approximate) | 55g |
