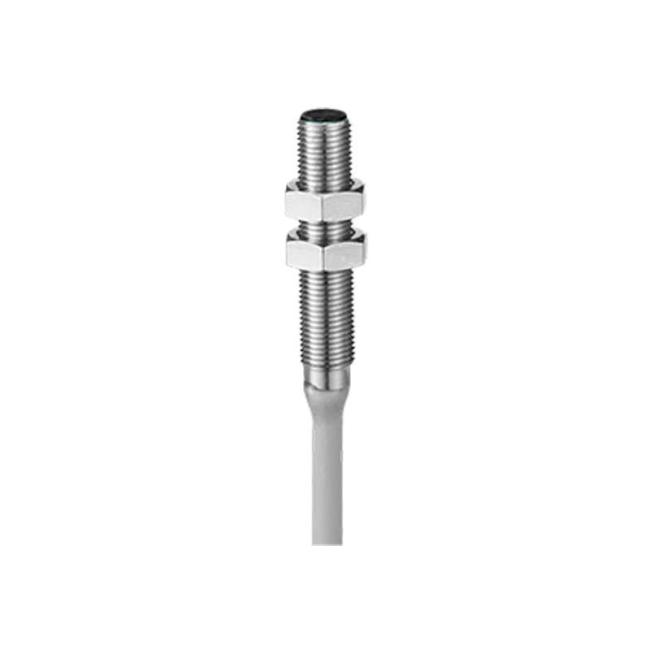

SR-SL-CS05 M5 Proximity Inductive Sensor Industrial Proximity Switch Light
Price:
Large quantity price negotiable
MOQ:
one
Delivery Time:
1-2 work days
Brand:
SUPERISYS
Product Description
SR-SL-CS05,Dc Inductive Approach Light
Product characteristics
Operating voltage: 10-30VDC
Output function: NPN/PNP, NO/NC Optional
With polarity, overload, short circuit protection
Protection level: IP67
Direct outlet type, connector type
Operating temperature -25°C-+70%C
The use of optimized traditional technology and advanced packaging technology to ensure long-term stability in harsh environments
| model | SR-SL-CS05 |
| external diameter | M5 |
| ● flush ○unshielded | ● |
| Sensing distance sn: mm | 0.8mm |
| canning material | stainless steel |
| ●tape light ○No indicator light |
● |
| picture |  |
| working voltage | 10-30VDC |
| Allowable ripple voltage | ＜10% |
| no-load current | ＜10mA |
| Maximum load current | 200mA |
| leak current | ＜0.01mA |
| pressure drop | ＜1.5V |
| switching frequency | 2KHz |
| response time | 0.1ms/0.1ms |
| Switching hysteresis | ＜15%(Sr) |
| repeatability | ＜1.0%(Sr) |
| level of protection | IP67 |
| operating temperature | -25℃~+70℃ |
| temperature drift | ＜10%(Sr) |
| short-circuit protection | YES |
| overcurrent | 220mA |
| Inductive surface material | POM |

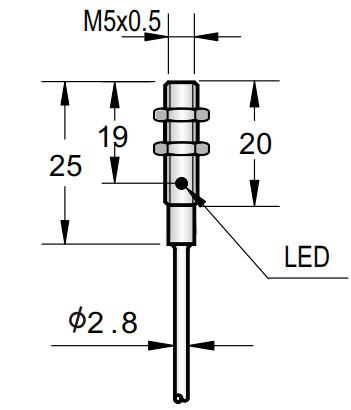

| Size drawing (unit: mm) |  |
| Cable 2m | 2.8φ3x0.15 |
| Weight (approximate) | 25g |
