SR-SC-C12 DC Capacitive Proximity Switch Sensor Direct outlet type
Price:
receive bargaining
MOQ:
one
Delivery Time:
1-2 work days
Brand:
SUPERISYS
Product Description
SR-SC-C12,Dc Capacitive Proximity Switch
Wide use, long life, high reliability:
Working voltage: 10-30VDC;
Output function: two lines normally open normally closed with polarity, overload, short circuit and other protection
Protection level: IP67
Direct outlet type, connector type
Operating temperature -25°C-+70°C
Capacitor switch all series have high and low temperature resistance series
| model | SR-SC-C12 | SR-SC-P12 | ||
| Short case type | SR-SC-CS12 | SR-SC-PS12 | ||
| external diameter | M12 | M12 | ||
| ● flush ○unshielded |
● | ○ | ● | ○ |
| Sensing distance sn: mm | 1-3mmadjustable | 1-6mmadjustable | 1-3mmadjustable | 1-6mmadjustable |
| canning material | coppered wire | PBT | ||
| ●tape light ○No indicator |
● | ● | ||

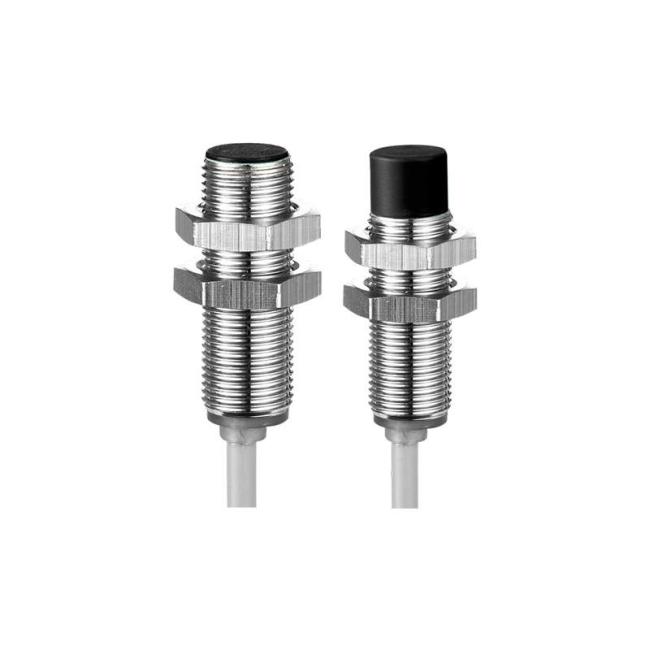

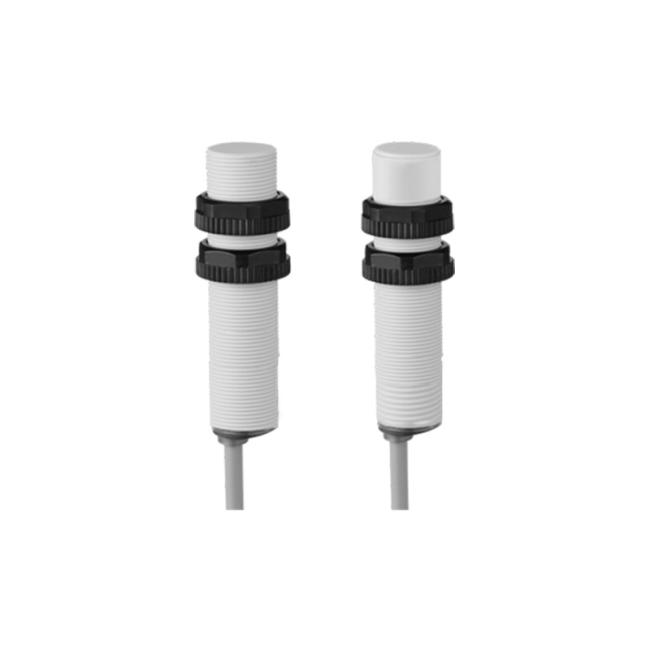

| picture |  |
 |
||
| technical specification | ||||
| working voltage | 10-30VDC / 5-36VDC / 10-55VDC / 10-60VDC＜10% | |||
| Allowable ripple voltage | ＜10% | |||
| no-load current | ＜10mA | |||
| Maximum load current | 200mA | |||
| leak current | ＜0.01mA | |||
| pressure drop | ＜2VDC | |||
| switching frequency | 100Hz | |||
| response time | 1.5ms/1.5ms | |||
| Switching hysteresis | ＜15%(Sr) | |||
| repeatability | ＜5%(Sr) | |||
| level of protection | IP67 | |||
| operating temperature | -25℃~+70℃ | |||
| temperature drift | ＜10%(Sr) | |||
| short-circuit protection | YES | |||
| overcurrent | 220mA | |||
| Inductive surface material | POM | |||
|

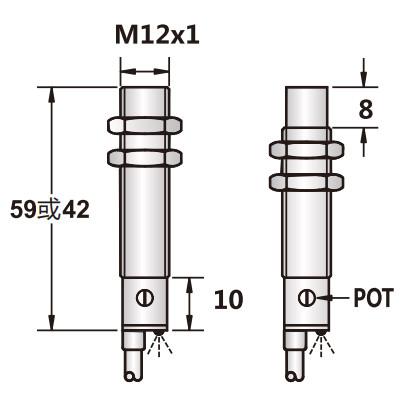

Dimension drawing |
 |
|
||
| Cable 2m | 3.8φ3x0.15 | 3.8φ3x0.15 | ||
| Weight (approximate) | 66gor55g | 65gor54g | 60gor55g | |
