• Accurate underground cable fault detection
• Precise pinpointing of fault locations
• Designed for professional utility applications
• Reliable performance in various underground conditions

• Utility maintenance and repair
• Underground cable fault detection
• Infrastructure diagnostics

Phase-to-armored wiring method

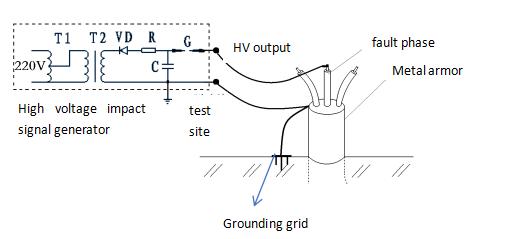

Figure  Relative armor connection method

When a phase-to-ground fault, a phase-to-phase

combined-to-ground fault, or a disconnection combined with a ground fault occurs, in short, as long as there is phase-to-ground insulation damage, the relative armoring method is preferred. The advantage is that the propagation attenuation of discharge sound at the fault point is small.

As shown in Figure , connect the high-voltage output of the high-voltage generator to the faulty phase of the cable, and connect the test ground to the metal armor of the cable.
