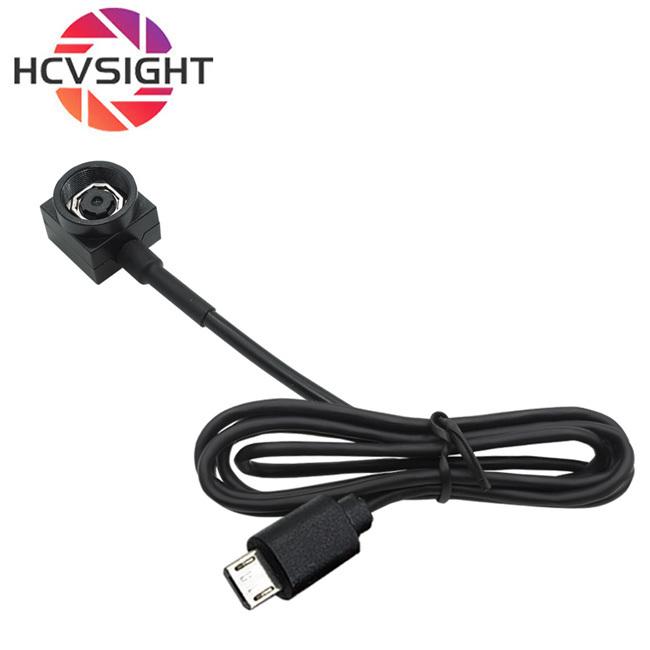

5MP OTG Mini USB Autofocus Camera For Machine Vision And Embedded Systems
| Parameter | Details |
|---|---|
| Sensor | 1/4" CMOS |
| Pixel | 5MP |
| Compression Format | MJPG/YUV2 |
| Frame Rate | 2560×1944 @ 30fps |
| Audio | Support |
| Power | DC 5V |
| Product Size | 15mm×15mm |
| Working Temperature | <70°C |
| Power Consumption | 0.25W |
| Model | HCU-ZZDJ155AZ |
| Interface Type | Android |
| Lens Specifications | Effective length: 3.57mm F.ON: 2.0+5% Distortion: <1.5% Component: 5E+IR |
| FOV | 78° |
| Supported OS | WinXP/Mac OS/Linux/Win7/Win8/Win10/Android |
- 5MP High Resolution: Supports 2592×1944 pixel shooting, providing crisp images and fine detail capture.
- Autofocus AF: Precise autofocus capability, handling shooting scenarios from close-up to infinity without manual adjustment.
- UVC Driverless Interface: Compatible with Windows, Linux, Android, and Mac systems, enabling plug-and-play functionality and reducing installation complexity.
- Compact Design: Ultra-small 15×15mm size, easily embedded in various devices, including industrial machines, access control systems, embedded inspection devices, and smart home products.
- Multi-Platform Compatibility: Supports USB 2.0/Type-C/USB-A, widely applicable to desktop data acquisition, remote monitoring, industrial machine vision, and facial recognition systems.
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).
Product Application
Machine vision cameras for automation
access control and facial recognition
embedded AI and IoT devices
medical and laboratory imaging
3D printer/CNC machine tool/laser cutting monitoring
video conferencing cameras
computer cameras for OEM laptops and terminals
security monitoring; barcode scanners
FAQ
Q: Can I purchase samples?
A: Small batch samples of 1–50pcs are supported.
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
Embedded cameras for face/object/barcode recognition
Industrial cameras for automated inspection and measurement
Security vision cameras for surveillance and monitoring.
Q: Can you customize cameras?
A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
Lens specification sheet:
About our more products:Huachuang Finished Product List.xls
