Mechanical Suspension Electronic Control Equipment Operating Console Operator Seat
Mechanical Suspension Electronic Control Equipment Operating Console
Operator Seat Details
|
Product Name
|
Mechanical Suspension Electronic Control Equipment Operating Console Operator Seat
|
|
Place of Origin
|
Shaanxi China
|
|
Product Model
|
M801-30
|
|
Scope Of Application
|
Universal
|
|
Product Size
|
570*570*1340-1400mm
|
|
Product Material
|
PU + Fabric
|
|
Product Color
|
Black + Blue
|
|
Backrest size
|
480*530mm
|
|
Cushion size
|
480*470*590-650mm
|
|
Head Restraint Adjustment
|
3 gears adjustable, 25mm for each gear
|
|
Adjustable Backrest Elevation
|
40-170°
|
|
Horizontal adjustment
|
Front 105mm, Rear 120mm 23 adjustable
|
|
Bottom Connecting Hole Spacing
|
Left And Right 216mm* Front And Rear 295.5mm
|
Mechanical Suspension Electronic Control Equipment Operating
Console Operator Seat Customization
1: Seat cushion surface can be : high-quality PU , Fabric, Leather Etc.,
2: Customers can change the fabric color and style according to their own needs.
3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat
box, front and rear horizontal adjustment rail, height adjustment, mechanical waist
support, ventilation heating function, etc., the price varies according to the option.
4: The general hole distance is commonly used: Left and right 216/240/260mm * Front
and rear 280/295.5mm also be customized .
5: Seat adjustment function plastic handle position: left, right,Or front can be choose
6: Mechanical weight adjustment position can be selected: left, right,Or front can be ch
oose
7.Backrest can choose height:530mm or 630mm

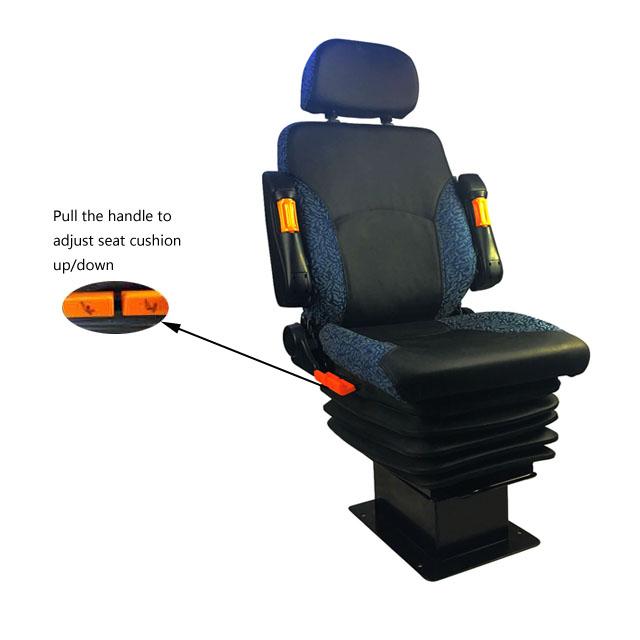

Mechanical Suspension Electronic Control Equipment Operating
Console Operator Seat Picture
