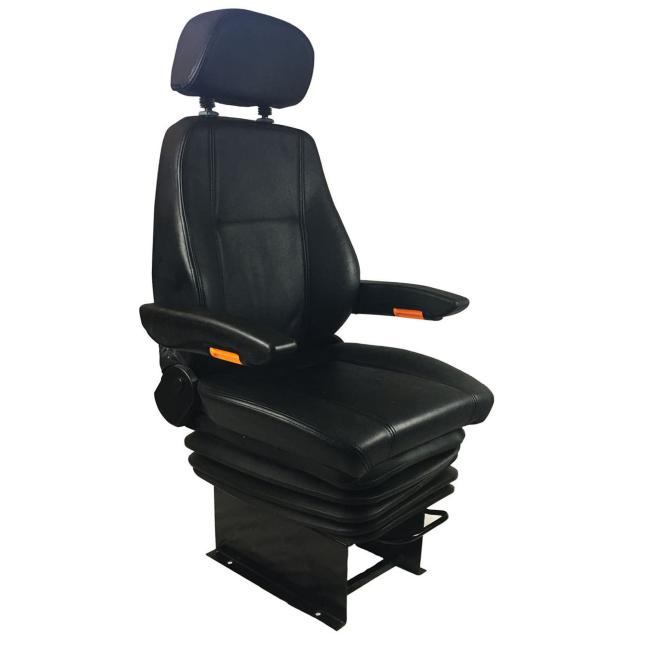

Mechanical Suspension Seats For Railway Train With Weight Adjustment

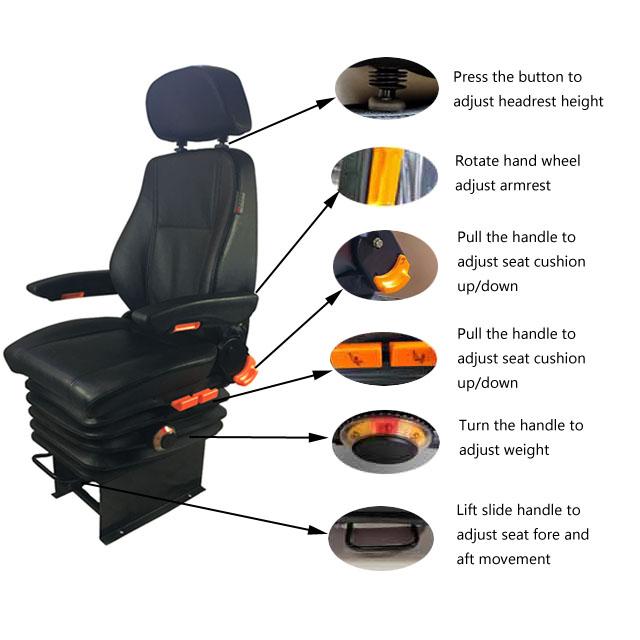

Functions:

1.Headrest adjustment:0-75mm

2.Armrest adjustment:0-90°

3.Backrest adjustment:80-120°

4.Height adjustment :0-60mm

5.Weight adjustment :40-130kg

6.Horizontal adjustment :front 105mm,rear 120mm

Customizable:

1: Seat cover can be choose: PU, Fabric, Leather Etc.,

2: Cover color and style Can be customized.

3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box,

     front and rear horizontal adjustment rail, height adjustment , ventilation or heating function,

     etc., the price according to the option.

4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm before and

    after ,or customized .

5: Seat adjustment function plastic handle position can be choose : left, right,or front

6: Mechanical weight adjustment position can be selected: left, right,or front

7.Backrest size can be choose 530/630mm
