China Powerline Tools SLU-5 Rated Load 50kN Galvanized Steel Connectors for sale
China Powerline Tools SLU-5 Rated Load 50kN Galvanized Steel Connectors for sale
China Powerline Tools SLU-5 Rated Load 50kN Galvanized Steel Connectors for sale

Powerline Tools SLU-5 Rated Load 50kN Galvanized Steel Connectors

Price Negotiable
Price: Negotiable
MOQ: 50pieces
Delivery Time: 15-35days
Brand: HANYU
Product Description

Powerline Tools SLU-5 Rated Load 50kN Galvanized Steel Connectors

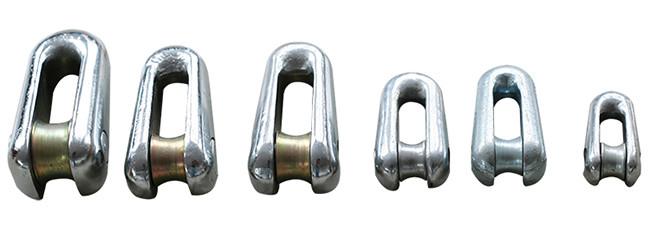

TYSLU Connectors
  • The connectors are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller bull wheels.
  • They are made of highly tensile galvanized steel.
Model Dimensions Weight Rated load
A B C d D E
mm kg kN
SLU-1 36 68 18 10 14 29 0.2 10
SLU-3 37 76 20 12 17 31 0.22 30
SLU-5 50 96 23 18 19 42 0.6 50
SLU-8 56 110 28 20 22 50 0.8 80
SLU-10 59 126 30 22 26 54 1.2 100
SLU-13 61 134 32 24 27 56 1.3 130
SLU-15 63 138 37 27 28 58 1.4 150
SLU-25 80 178 44 32 35 72 3.0 250
SLU-28 80 178 44 32 35 72 3.0 280
SLU-32 85 186 42 30 38 80 3.9 320
