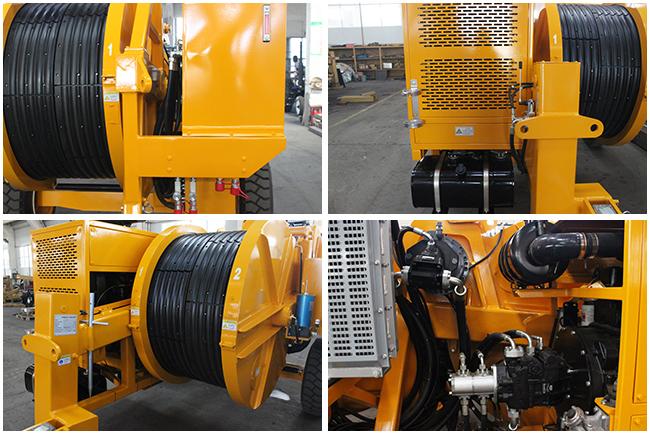

TY2x35 Hydraulic Tensioner |
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains |
|
Characteristics |
Bull-wheel diameter: 1300mm |
|
Max conductor diameter: 40mm |
|
|
Groove number: 2x5 |
|
|
Total weight: 4500kg |
|
|
Overall dimension (length*width*height): 4300×2250×2700mm |
|
|
Performance |
Max intermittent tension: 2x40kN |
|
Max continuous tension: 2x35kN |
|
|
Speed at max tension: 2.5km/h |
|
|
Max speed: 5km/h |
|
| Pull at max speed: 2x20kN | |
| Max reverse pulling force: 2x30kN | |
| Max reverse pulling speed: 5km/h | |
|
Main configuration |
Engine: Cummins |
| Main hydraulic valves: USA Sun / Italy ATOS | |
| Speed reducer: German Rexroth / Italy Bonfiglioli | |
| Main motor: German Rexroth/French Leduc | |
| Hydraulic pump: German Rexroth/Dnish Danfoss | |
|
Engine |
Diesel: 77kw(103hp) |
| Electrical system: 24V | |
| Cooling system: water | |
|
Hydraulic Transmission |
The machine can realize step less speed. |
| The machine is provided with tension presetting system. | |
|
Configuration |
Hydraulic dynamometers |
| Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor | |
| Grounding connection point | |
| Digital speed and meter counter | |
| Hydraulic oil cooling system | |
|
Additional Devices |
Lighting system for the trailer |
| Swivel guide rope roller | |
| 2 hydraulic conductor clamps for drum change operations (extra charge) | |
| Air brake system for the trailer (extra charge) |
