Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner

Price Negotiable

Price: USD57,500-61,000/set

MOQ: 1set

Delivery Time: 15-35days

Brand: HANYU

Product Description

Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner

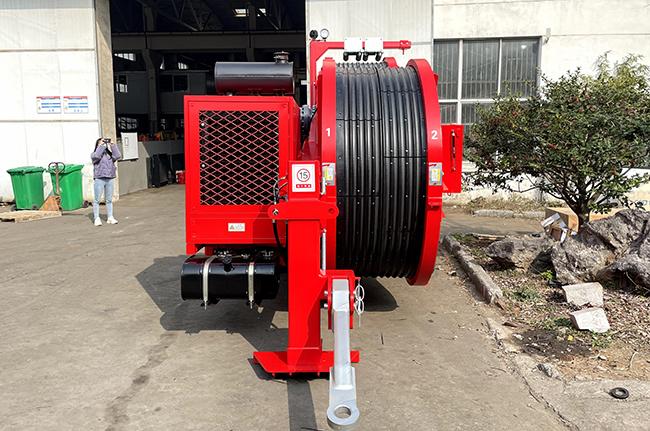

TY2x40-1800 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Bull-wheel diameter: 1800mm
Max conductor diameter: 40mm
Groove number: 2x5
Total weight: 7790kg
Overall dimension (length*width*height): 4600×2250×2700mm

Performance

Max intermittent tension: 2x45kN
Max continuous tension: 2x40kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Pull at max speed: 2x20kN
Max reverse pulling force: 2x35kN
Max reverse pulling speed: 5km/h

Main configuration

Engine: Cummins
Hydraulic pump: German Rexroth/Dnish Danfoss
Main motor:German Rexroth/French Leduc
Speed reducer: German Rexroth / Italy Bonfiglioli
Main hydraulic valves: USA Sun / Italy ATOS

Engine

Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Configuration

Hydraulic dynamometers
Hydraulic oil cooling system
Digital speed and meter counter
Hydraulic front stabilizer
Grounding connection point
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
