China Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor for sale

Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor

Price Negotiable

Price: USD57,500-61,000/set

MOQ: 1set

Delivery Time: 15-35days

Brand: HANYU

Product Description

Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor

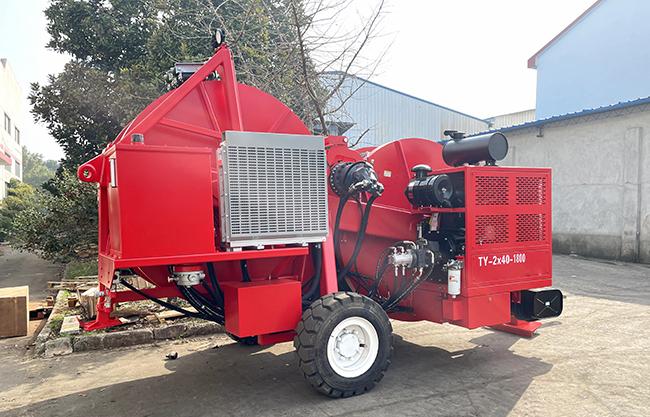

TY2x40-1800 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance	Max intermittent tension	2x45kN
	Max continuous tension	2x40kN
	Speed at max tension	2.5km/h
	Max speed	5km/h
	Pull at max speed	2x20kN
	Max reverse pulling force	2x35kN
	Max reverse pulling speed	5km/h
Characteristics	Bull-wheel diameter	1800mm
	Max conductor diameter	40mm
	Groove number	2x5
	Total weight	7790kg
	Overall dimension (lengthwidthheight)	4600×2250×2700mm
Main configuration	Engine	Cummins
	Hydraulic pump	German Rexroth/Dnish Danfoss
	Main motor	German Rexroth/French Leduc
	Speed reducer	German Rexroth / Italy Bonfiglioli
	Main hydraulic valves	USA Sun / Italy ATOS
Engine	Diesel	77kw(103hp)
	Cooling system	water
	Electrical system	24V
Additional Devices	2 hydraulic rope/conductor clamp(extra charge)
	Digital speed and meter counter
	Lighting system for the trailer
	Swivel guide rope roller
	Trailer for towing at max speed of 15 km/h
Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.
Configuration	Hydraulic oil cooling system
	Grounding connection point
	Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
	Hydraulic dynamometers
	Hydraulic front stabilizer
	Digital speed and meter counter
