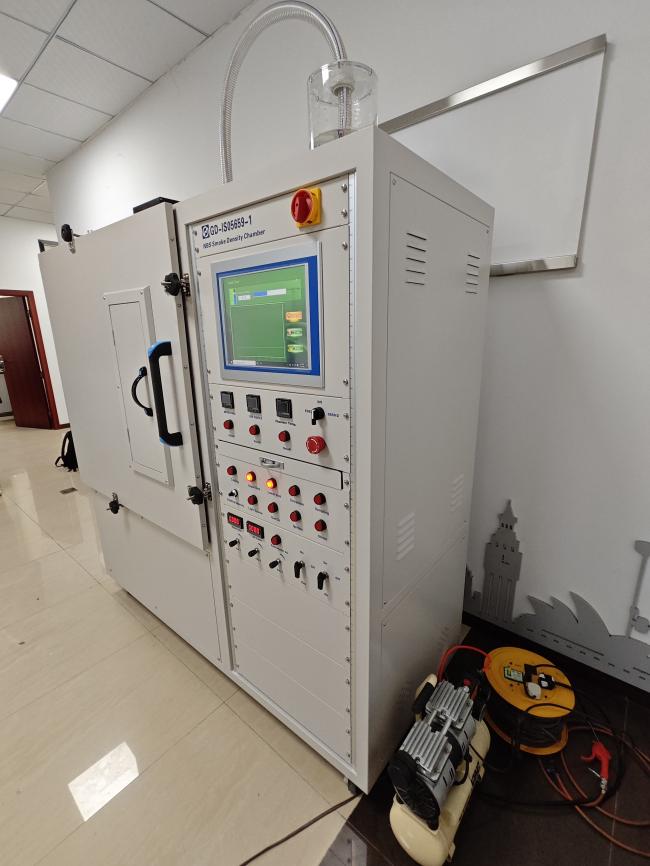

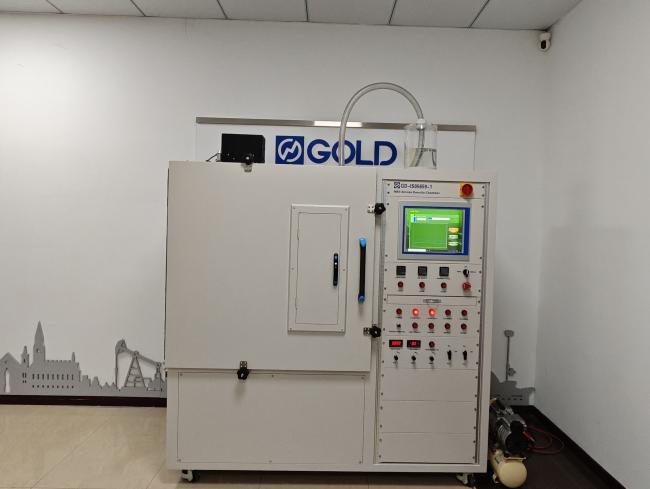

Lab Fire Test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
The NBS Smoke Density Chamber measures optical density of smoke generated from test samples when exposed to heat sources or fire in a controlled chamber environment. This precision instrument supports various international standards including ASTM E662, ISO 5659, and BS6401.
Product Introduction
The Smoke Density Chamber evaluates optical density of smoke produced from test samples of specific thickness when exposed to radiant heat sources (25KW/m² using ASTM E662 furnace) or direct flame. The ISO 5659 NBS Smoke Density Test Apparatus for plastics complies with multiple international standards and features adjustable heating conditions from 10KW/m² to 70kW/m² to meet diverse testing requirements.
Compliance Standards
- ASTM E 662: Standard Test Method for Specific Optical Density of Smoke Generated by Solid Materials
- BSI 6401: British Standard Method for Measurement of Specific Optical Density of Smoke Generated by Materials
- ISO 5659-2: Plastics-Smoke Generation - Determination of Optical Density by Single-Chamber Test
- NES 711: Determination of the Smoke Index of Products of Combustion from Small Specimens of Material
Technical Specifications
| Product Name | ISO 5659 NBS Smoke Density Test For Plastic |
|---|---|
| Dimensions | 1,600mm (W) × 820mm (D) × 2,150mm (H) |
| Power Requirements | 220 V AC, 60 Hz, 15 A |
| Weight | 350 kg |
| Documentation | Manual Supplied |
| Exhaust Capacity | 50 l/s |
| Required Utilities | Compressed Air, Propane Gas, Personal Computer, Dust Collector |
Key Features
- Integrated body with 19" analysis rack for space efficiency
- 17" touch screen panel PC for complete control and automated testing
- Air cylinder movement system for sample loading and automatic vent operation
- Chemical-resistant coating for easy cleaning and durability
- Single-action chamber door locking mechanism
- High-accuracy transmission rate and smoke density indication
- Chamber preheat system for enhanced testing precision
- Safety blow-out panel system for pressure protection
- Heated ports, filters, and lines for toxic gas measurement
- Precision manometer with MFC and DPT for automatic leakage testing
- Portable water cooling system eliminating need for plumbing
- High-accuracy load cell for mass loss rate measurement
- SB 2005 DAQ Program for touch screen panel PC control
Support Services
- Technical consulting support
- Sample testing assistance
- Factory visiting arrangements
- Comprehensive training programs
- Professional installation support
- 24/7 customer service availability
