200A Hand Arc Welding Machine with 2KW DC Power Supply
Price:
332-420 usd/set
MOQ:
1 sets
Delivery Time:
5-15 days
Brand:
RDC
Product Description

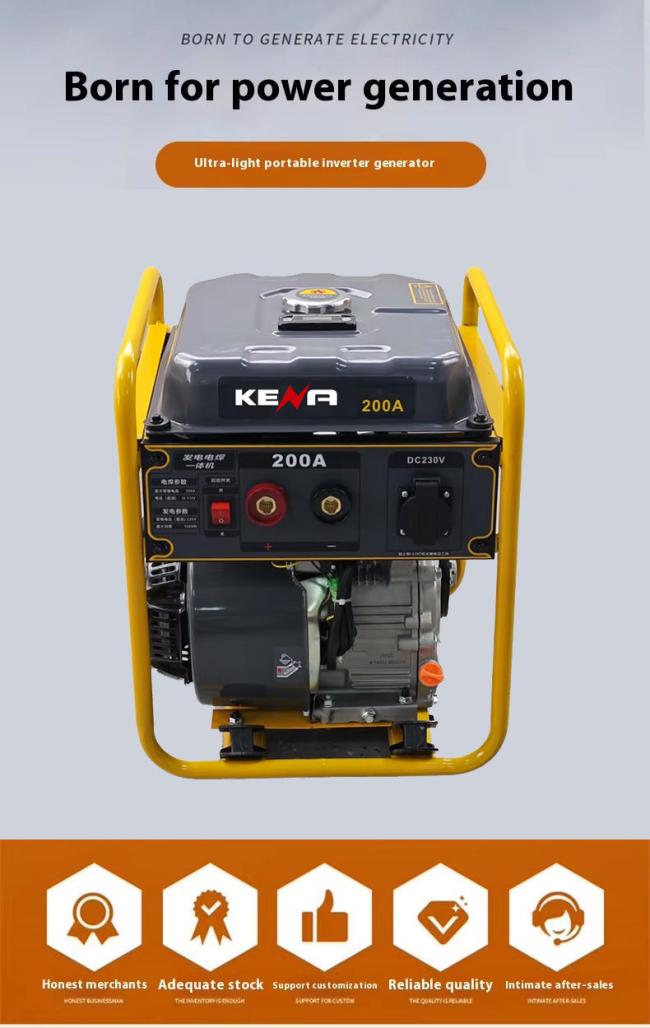

Hand Arc Welding Machine Continuous Duty Welding Equipment
The gasoline electric welding generator solves the problem of no power supply on the construction site.
The device adopts a 170 type engine, and its motor is made of rare earth permanent magnet material Nd-Fe-B. The overall design is compact and lightweight.
Within the current range of 160A, electrodes measuring 3.2mm in length and 4.0mm in length can be welded. If higher current is required, larger models can be chosen.
In addition, the equipment panel is equipped with a 2KW, DC220V small power supply, which supports supplying power to devices such as carbon brush power tools and incandescent lamps.
asoline electric welding power generation machine solves the problem that there is no power supply for field electric welding.
The device adopts a 170 type engine, and its motor is made of rare earth permanent magnet material Nd-Fe-B. The overall design is compact and lightweight.
Within the current range of 160A, electrodes measuring 3.2mm in length and 4.0mm in length can be welded. If higher current is required, larger models can be chosen.
In addition, the equipment panel is equipped with a 2KW, DC220V small power supply, which supports supplying power to devices such as carbon brush power tools and incandescent lamps.
asoline electric welding power generation machine solves the problem that there is no power supply for field electric welding.
170engine motor is made of rare earth permanent magnet material Nd-Fe-B. the whole machines is small and light.
It can weld 3.2mm long and 4.0mm short electrodes within the current range of 160A. If you want more current, you can choose a larger model.
In addition, the panel os equipped with 2KW, DC220V small power supply, and the output can be carbon brush electric tools,
incandescent lighting. Note: inductive loads (such as transformers, fans, AC motors, household appliances. etc.) are not allowed.
| Model Parameters |
KN4500-200A |
| Current Regulation Range | 200A |
| No-load Voltage | 70-75V |
| Operating Voltage | 22-28V |
| Welding Method | Hand Arc Welding |
| Load Persistence Rate | 0.6 |
| Electrode Range (Φ) | 2.5-4.0 |
| Output Voltage | 120V/220V/240V |
| Output Power | DC1kW |
| Working Status | Continuous |
| Starting System | 240cc |
| Ignition Method | Inductive discharge type |
| Displacement | Recoil |
| G.W. | 24kg |
| Package Size | 395*380*470mm |
